3006-1551 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

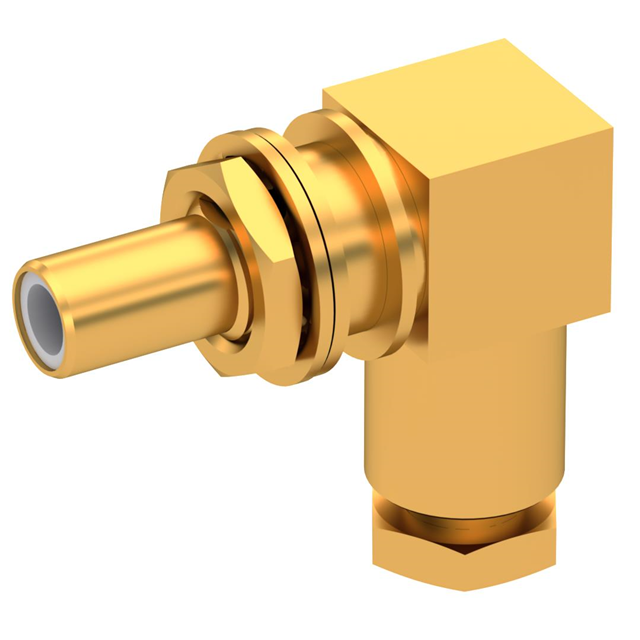

SLB / RIGHT ANGLE JACK MALE CLAM
| Part | Body Finish | Voltage Rating | Mating Cycles | Center Contact Plating | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Loss | Dielectric Material | Mounting Feature | Center Contact Material | Shield Termination | Impedance | Housing Color | Connector Type | Fastening Type | Number of Ports | Connector Style | Mounting Type | Cable Group | Frequency - Max [Max] | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | 250 V | 500 | Gold | Brass | -65 ░C | 165 °C | 0.6 dB | Polytetrafluoroethylene (PTFE) | Bulkhead - Front Side Nut | Brass | Clamp | 50 Ohms | Gold | Jack Male Pin | Snap-On | 1 | SLB | Panel Mount Right Angle | RD-178 196 Double Braid | 4 GHz | Solder |
Radiall USA, Inc. | Gold | 335 V | 500 | Gold | Brass | -65 ░C | 165 °C | 0.6 dB | Polytetrafluoroethylene (PTFE) | Bulkhead - Front Side Nut | Brass | Clamp | 50 Ohms | Gold | Jack Male Pin | Snap-On | 1 | SLB | Panel Mount Right Angle | RG-316 Double Braid | 4 GHz | Solder |
