325010 Series
Manufacturer: Curtis Industries
Beta
⌘K
CONN BARRIER STRIP 1CIRCUIT
| Part | Mounting Type | Operating Temperature | Terminal Screw Material | Material Flammability Rating | Material - Insulation | Top Termination | Current Rating (Amps) | Barrier Type | Features | Bottom Termination | Number of Circuits | Terminal Block Type | Number of Wire Entries | Number of Rows | Voltage Rating | Wire Gauge [Min] | Wire Gauge [Max] | Pitch | Pitch | Number of Wire Entries [custom] | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Curtis Industries | Chassis Panel Through Hole | 105 C | Steel | UL94 V-0 | Polypropylene (PP) | Screws | 15 A | 2 Wall (Dual) | Flange | PC Pin | 1 | Barrier Block | 1 | 1 | 300 VDC | 14 AWG | 22 AWG | ||||

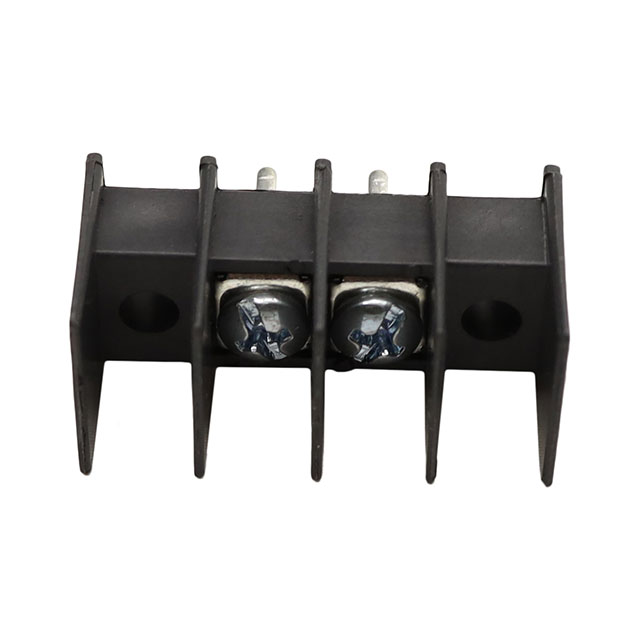

 Curtis Industries | Chassis Panel Through Hole | 105 C | Steel | UL94 V-0 | Polypropylene (PP) | Screws | 15 A | 2 Wall (Dual) | Flange | PC Pin | 2 | Barrier Block | 2 | 1 | 300 VDC | 14 AWG | 22 AWG | 0.325 in | 8.26 mm | ||

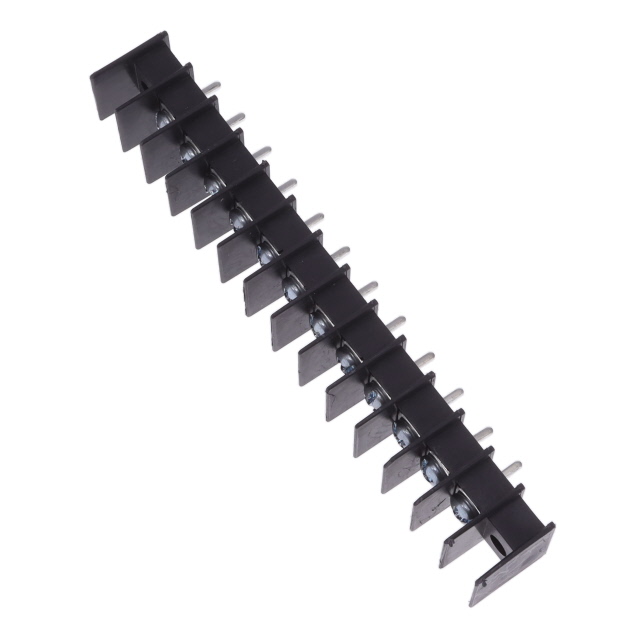

 Curtis Industries | Chassis Panel Through Hole | 105 C | Steel | UL94 V-0 | Polypropylene (PP) | Screws | 15 A | 2 Wall (Dual) | Flange | PC Pin | 12 | Barrier Block | 12 | 1 | 300 VDC | 14 AWG | 22 AWG | 0.325 in | 8.26 mm | ||

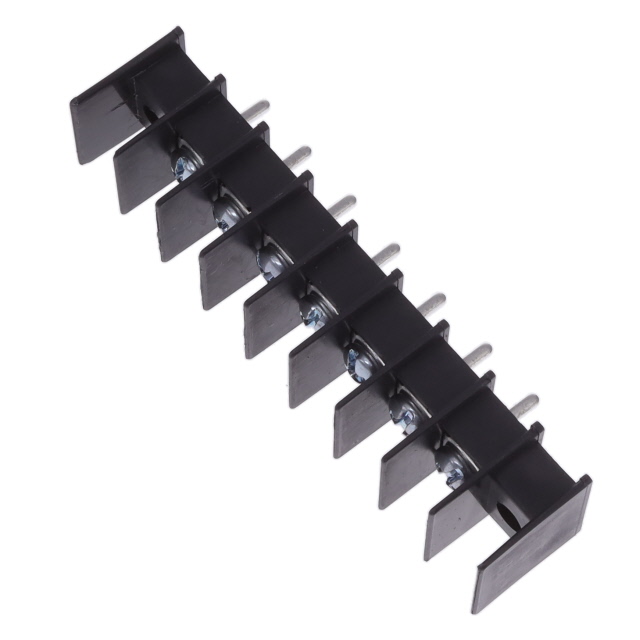

 Curtis Industries | Chassis Panel Through Hole | 105 C | Steel | UL94 V-0 | Polypropylene (PP) | Screws | 15 A | 2 Wall (Dual) | Flange | PC Pin | 7 | Barrier Block | 1 | 300 VDC | 14 AWG | 22 AWG | 0.325 in | 8.26 mm | 7 | ||
Curtis Industries | Chassis Panel Through Hole | 105 C | Steel | UL94 V-0 | Polypropylene (PP) | Screws | 15 A | 2 Wall (Dual) | Flange | PC Pin | 21 | Barrier Block | 21 | 1 | 300 VDC | 14 AWG | 22 AWG | 0.325 in | 8.26 mm | ||

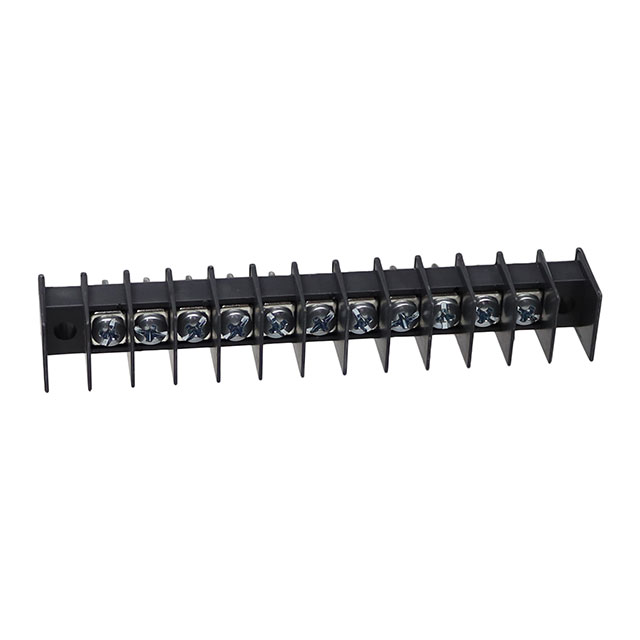

 Curtis Industries | Chassis Panel Through Hole | 105 C | Steel | UL94 V-0 | Polypropylene (PP) | Screws | 15 A | 2 Wall (Dual) | Flange | PC Pin | 11 | Barrier Block | 11 | 1 | 300 VDC | 14 AWG | 22 AWG | 0.325 in | 8.26 mm | ||
 Curtis Industries | Chassis Panel Through Hole | 105 C | Steel | UL94 V-0 | Polypropylene (PP) | Screws | 15 A | 2 Wall (Dual) | Flange | PC Pin | 16 | Barrier Block | 16 | 1 | 300 VDC | 14 AWG | 22 AWG | 0.325 in | 8.26 mm | ||

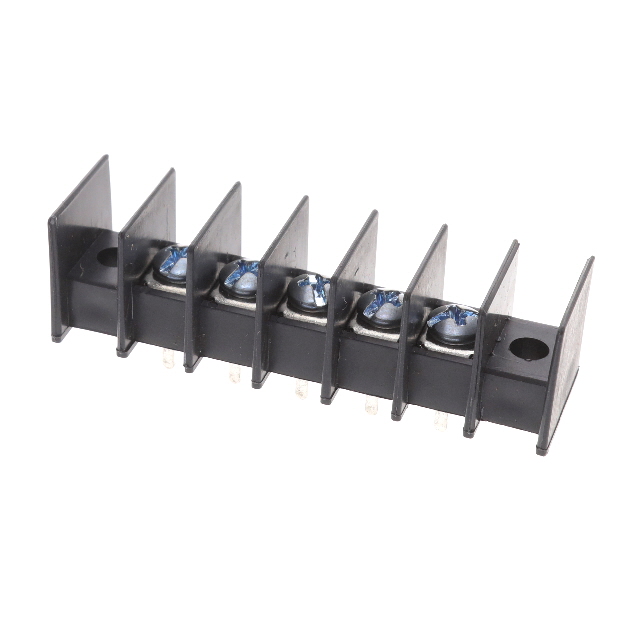

 Curtis Industries | Chassis Panel Through Hole | 105 C | Steel | UL94 V-0 | Polypropylene (PP) | Screws | 15 A | 2 Wall (Dual) | Flange | PC Pin | 5 | Barrier Block | 5 | 1 | 300 VDC | 14 AWG | 22 AWG | 0.325 in | 8.26 mm | ||
 Curtis Industries | Chassis Panel Through Hole | 105 C | Steel | UL94 V-0 | Polypropylene (PP) | Screws | 15 A | 2 Wall (Dual) | Flange | PC Pin | Barrier Block | 9 | 1 | 300 VDC | 14 AWG | 22 AWG | 0.325 in | 8.26 mm | 9 | ||
Curtis Industries | Chassis Panel Through Hole | 105 C | Steel | UL94 V-0 | Polypropylene (PP) | Screws | 15 A | 2 Wall (Dual) | Flange | PC Pin | 24 | Barrier Block | 1 | 300 VDC | 14 AWG | 22 AWG | 0.325 in | 8.26 mm |
