C146 10R010 Series

Manufacturer: Amphenol Tuchel Industrial

Catalog

CONN HOOD SIDE ENTRY SZE10 M20

Part	Housing Material	Ingress Protection	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Connector Type	Style	Size	Operating Temperature [Min]	Operating Temperature [Max]	Thread Size	Lock Location	Features

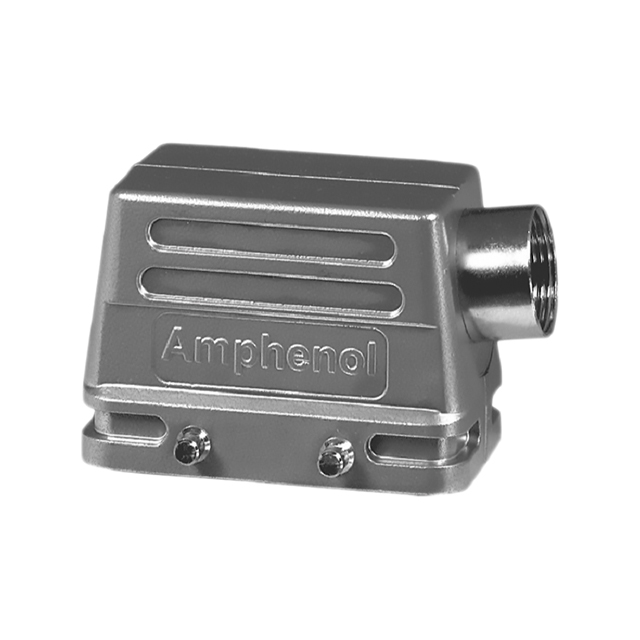

Amphenol Tuchel Industrial C146 10R010 550 1	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	1.693 "	73 mm	51 mm	43 mm	2.874 "	2.008 "	Hood	Side Entry	E10	-40 C	100 °C	M20	Locking Clip (2) on Base Bottom

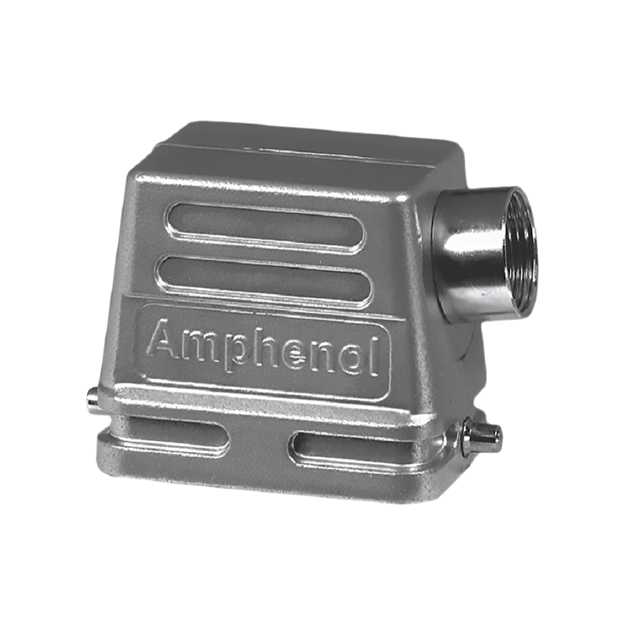

Amphenol Tuchel Industrial C146 10R010 556 1	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	1.693 "	73 mm	51 mm	43 mm	2.874 "	2.008 "	Hood	Side Entry	E10	-40 C	100 °C	M20	Locking Clip (1) on Base Bottom

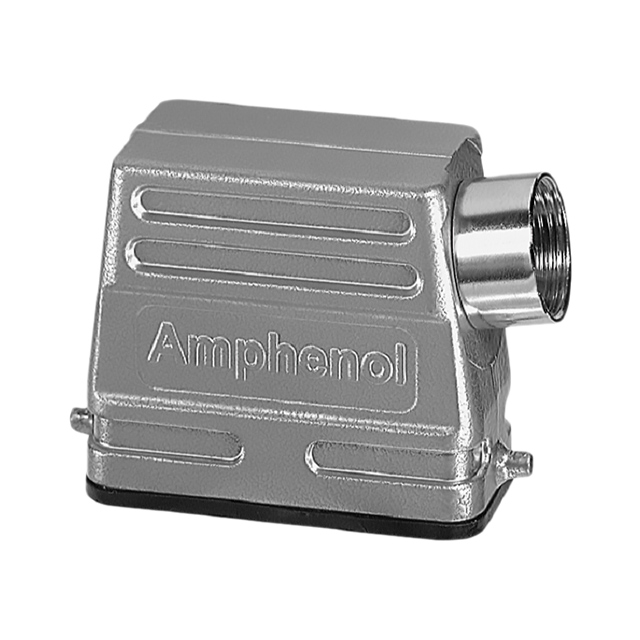

Amphenol Tuchel Industrial C146 10R010 500 4	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	1.161 in	62.5 mm	53 mm	29.5 mm	2.461 "	2.087 in	Hood	Side Entry	A10	-40 C	100 °C	M25	Locking Clip (1) on Base Bottom

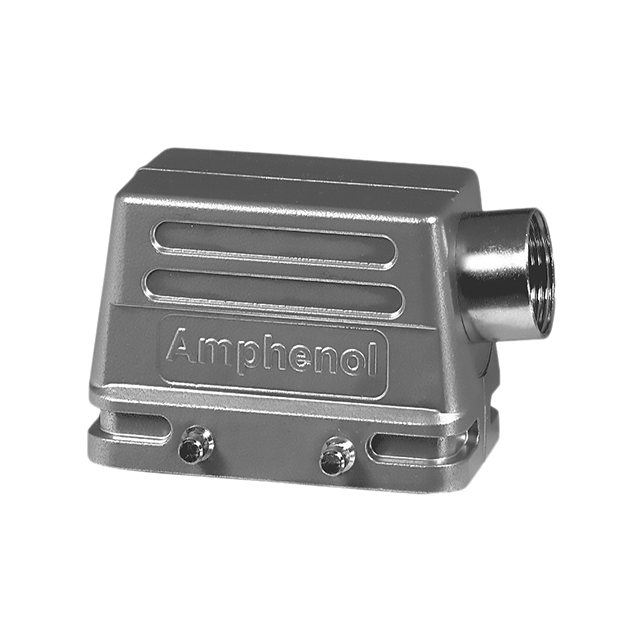

Amphenol Tuchel Industrial C146 10R010 500 1	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	1.693 "	73 mm	51 mm	43 mm	2.874 "	2.008 "	Hood	Side Entry	E10	-40 C	100 °C	M25	Locking Clip (2) on Base Bottom
Amphenol Tuchel Industrial C146 10R010 550 4	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	1.161 in	62.5 mm	53 mm	29.5 mm	2.461 "	2.087 in	Hood	Side Entry	A10	-40 C	100 °C	M20	Locking Clip (1) on Base Bottom

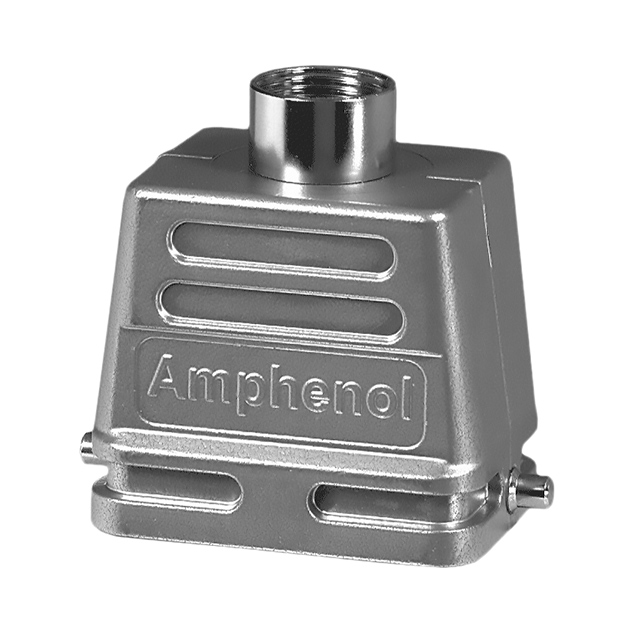

Amphenol Tuchel Industrial C146 10R010 606 1	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	1.693 "	73 mm	51 mm	43 mm	2.874 "	2.008 "	Hood	Top Entry	E10	-40 C	100 °C	M25	Locking Clip (1) on Base Bottom

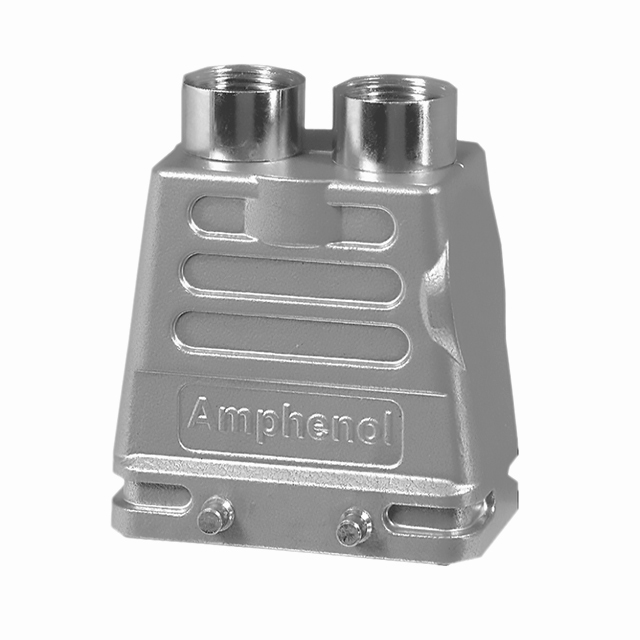

Amphenol Tuchel Industrial C146 10R010 902 8	Aluminum Die Cast	IP65 - Dust Tight Water Resistant	1.693 "	73 mm	70 mm	43 mm	2.874 "	2.756 "	Hood	Top Entry Dual	E10	-40 C	100 °C	M25	Locking Clip (2) on Base Bottom

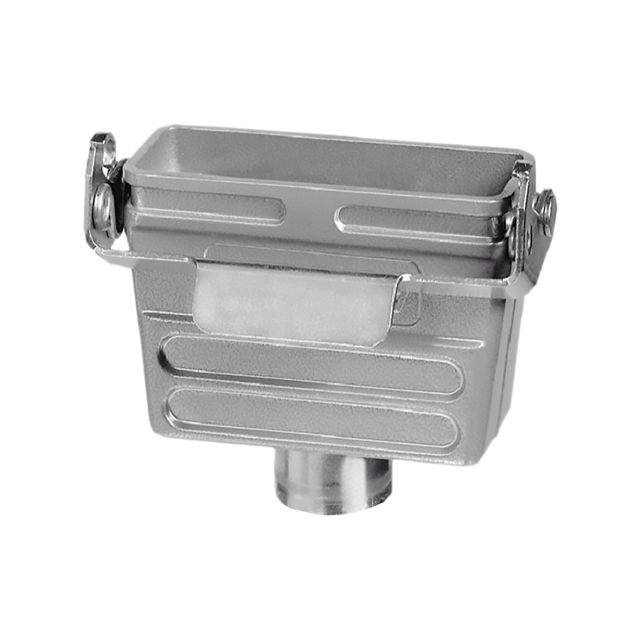

Amphenol Tuchel Industrial C146 10R010 854 4	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	1.161 in	62.5 mm	47.5 mm	29.5 mm	2.461 "	1.87 in	Hood - Coupling	Bottom Entry Top or Bottom Entry	A10	-40 C	100 °C	M20	Locking Clip (1) on Hood Top	Cable to Cable
