M40-301 Series

Catalog

CONN, HEADER, 2POS, 1ROW, 1MM ROHS COMPLIANT: YES

Part	Insulation Color	Operating Temperature [Max]	Operating Temperature [Min]	Style	Shrouding	Contact Material	Voltage Rating	Connector Type	Contact Type	Material Flammability Rating	Mounting Type	Features	Number of Positions	Number of Rows	Insulation Material	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Termination	Contact Shape	Fastening Type	Number of Positions Loaded	Insulation Height	Insulation Height	Mated Stacking Heights
Harwin Inc. M40-3010246R	Natural	85 °C	-25 °C	Board to Board Cable	Shrouded - 4 Wall	Copper Alloy	50 VAC	Header	Male Pin	UL94 V-0	Surface Mount	Pick and Place Solder Retention	2	1	Liquid Crystal Polymer (LCP)	1 mm	0.039 in	Tin	4.35 mm	0.171 in	Solder	Rectangular	Detent Lock	All

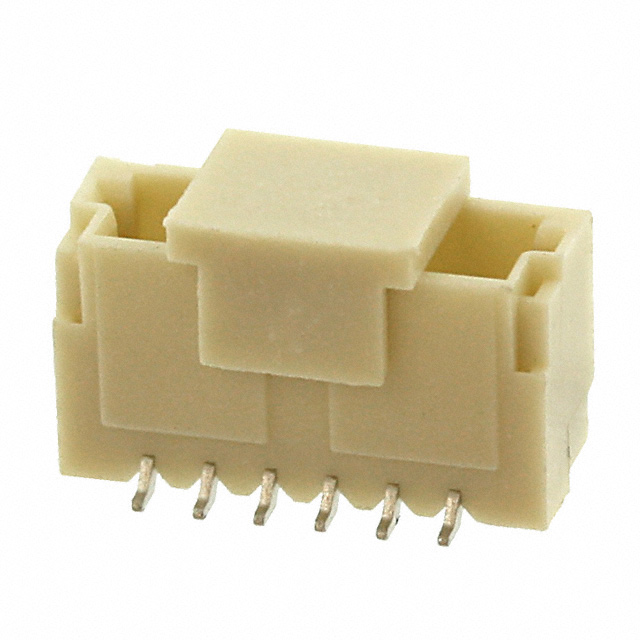

Harwin Inc. M40-3010646	Natural	85 °C	-25 °C	Board to Cable/Wire	Shrouded - 4 Wall	Phosphor Bronze	50 V	Header	Male Pin	UL94 V-0	Surface Mount	Pick and Place Solder Retention	6	1	Nylon 9T Polyamide (PA9T)	1 mm	0.039 in	Tin			Solder	Rectangular	Detent Lock	All	4.3 mm	0.169 "

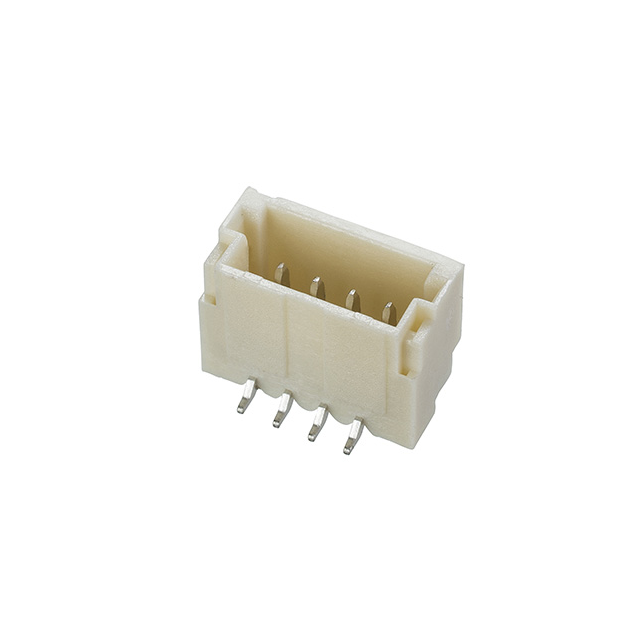

Harwin Inc. M40-3010346R	Natural	85 °C	-25 °C	Board to Board Cable	Shrouded - 4 Wall	Copper Alloy	50 VAC	Header	Male Pin	UL94 V-0	Surface Mount	Pick and Place Solder Retention		1	Liquid Crystal Polymer (LCP)	1 mm	0.039 in	Tin	4.35 mm	0.171 in	Solder	Rectangular	Detent Lock	All
Harwin Inc. M40-3011246R	Natural	85 °C	-25 °C	Board to Board Cable	Shrouded - 4 Wall	Copper Alloy	50 VAC	Header	Male Pin	UL94 V-0	Surface Mount	Pick and Place Solder Retention	12	1	Liquid Crystal Polymer (LCP)	1 mm	0.039 in	Tin	4.35 mm	0.171 in	Solder	Rectangular	Detent Lock	All
Harwin Inc. M40-3010846R	Natural	85 °C	-25 °C	Board to Board Cable	Shrouded - 4 Wall	Copper Alloy	50 VAC	Header	Male Pin	UL94 V-0	Surface Mount	Pick and Place Solder Retention	8	1	Liquid Crystal Polymer (LCP)	1 mm	0.039 in	Tin	4.35 mm	0.171 in	Solder	Rectangular	Detent Lock	All

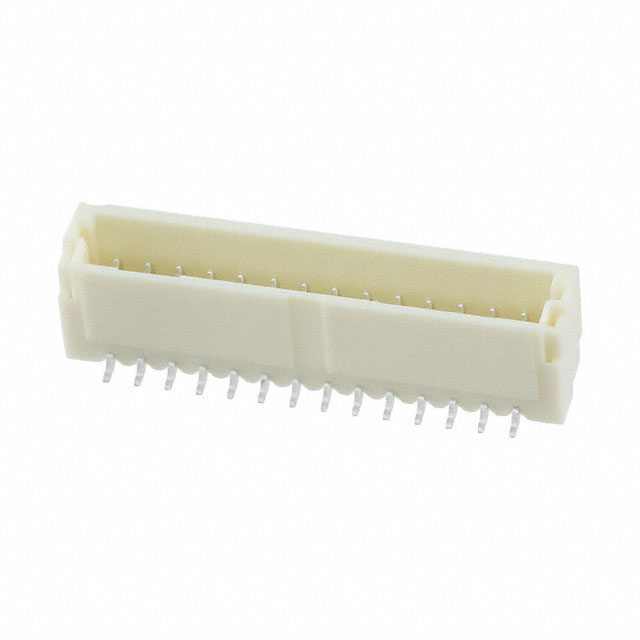

Harwin Inc. M40-3011446	Natural	85 °C	-25 °C	Board to Cable/Wire	Shrouded - 4 Wall	Phosphor Bronze	50 V	Header	Male Pin	UL94 V-0	Surface Mount	Pick and Place Solder Retention	14	1	Nylon 9T Polyamide (PA9T)	1 mm	0.039 in	Tin			Solder	Rectangular	Detent Lock	All	4.3 mm	0.169 "
Harwin Inc. M40-3011546	Natural	85 °C	-25 °C	Board to Cable/Wire	Shrouded - 4 Wall	Phosphor Bronze	50 V	Header	Male Pin	UL94 V-0	Surface Mount	Pick and Place Solder Retention	15	1	Nylon 9T Polyamide (PA9T)	1 mm	0.039 in	Tin			Solder	Rectangular	Detent Lock	All	4.3 mm	0.169 "
Harwin Inc. M40-3010346	Natural	85 °C	-25 °C	Board to Cable/Wire	Shrouded - 4 Wall	Phosphor Bronze	50 V	Header	Male Pin	UL94 V-0	Surface Mount	Pick and Place Solder Retention		1	Nylon 9T Polyamide (PA9T)	1 mm	0.039 in	Tin			Solder	Rectangular	Detent Lock	All	4.3 mm	0.169 "

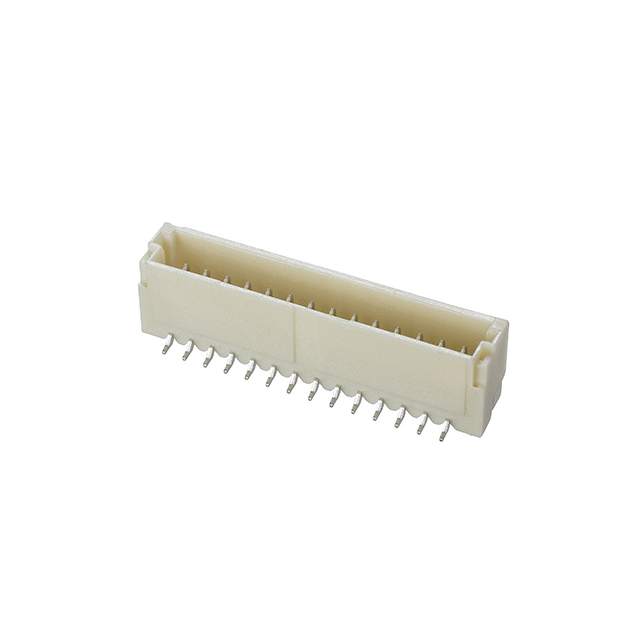

Harwin Inc. M40-3011346	Natural	85 °C	-25 °C	Board to Cable/Wire	Shrouded - 4 Wall	Phosphor Bronze	50 V	Header	Male Pin	UL94 V-0	Surface Mount	Pick and Place Solder Retention	13	1	Nylon 9T Polyamide (PA9T)	1 mm	0.039 in	Tin			Solder	Rectangular	Detent Lock	All	4.3 mm	0.169 "
Harwin Inc. M40-3010546R	Cream	85 °C	-25 °C	Board to Cable/Wire	Shrouded - 4 Wall	Copper Alloy	50 VAC	Header	Male Pin	UL94 V-0	Surface Mount	Pick and Place	5	1	Halogen Free Liquid Crystal Polymer (LCP)	1 mm	0.039 in	Tin			Solder	Rectangular	Push-Pull	All	4.25 mm	0.167 "	7.7 mm
