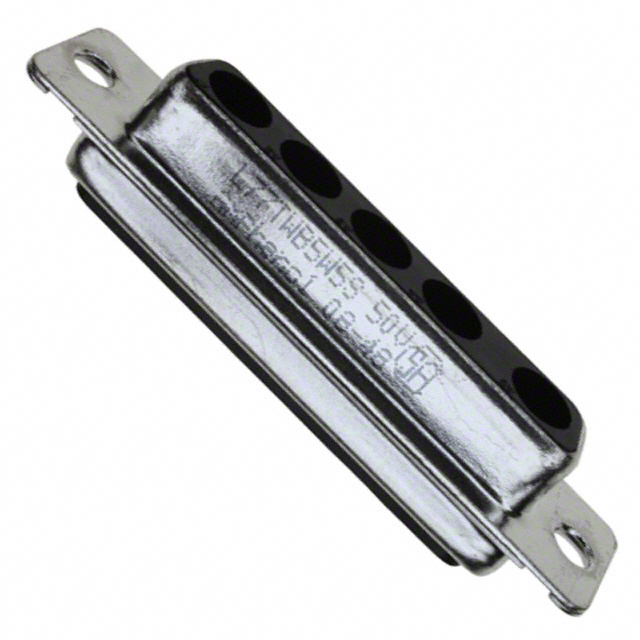

L77TWB5 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
CONN D-SUB RCPT 5POS R/A SLDR
| Part | Color | Dielectric Material | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Termination | Mounting Type | Number of Rows | Contact Finish | Flange Feature | Connector Type | Backset Spacing | Backset Spacing | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Connector Style | Mating Cycles | Note | Shell Finish Thickness | Shell Finish Thickness | Features | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | Black | Thermoplastic | Bronze | 155 C | -55 C | 300 VDC | 5 | 16 µin | 0.41 µm | Coax | Solder | Panel Mount Right Angle Through Hole | 1 | Gold | Housing/Shell (Unthreaded) | Receptacle Female Sockets | 10.3 mm | 0.406 in | 3 | DB B | 5W5 | Combo D-Sub | ||||||
 Amphenol ICC (Commercial Products) | Black | Thermoplastic Glass Filled | 125 °C | -55 C | 5 | Power | Free Hanging (In-Line) | 1 | Housing/Shell (Unthreaded) | Receptacle for Female Contacts | 3 | DB B | 5W5 | Combo D-Sub | 200 | Contacts Not Included | 2.54 µm | 100 µin | ||||||||||
Amphenol ICC (Commercial Products) | Black | Thermoplastic | Bronze | 155 C | -55 C | 300 VDC | 5 | 16 µin | 0.41 µm | Power | Solder | Panel Mount Right Angle Through Hole | 1 | Gold | Board Side (4-40) | Receptacle Female Sockets | 21.46 mm | 0.845 in | 3 | DB B | 5W5 | Combo D-Sub | Board Lock Mounting Brackets | |||||
Amphenol ICC (Commercial Products) | Black | Thermoplastic | Bronze | 155 C | -55 C | 300 VDC | 5 | Power | Panel Mount | 1 | Gold | Housing/Shell (Unthreaded) | Receptacle Female Sockets | 3 | DB B | 5W5 | Combo D-Sub | Guide Pin | Flash | |||||||||
Amphenol ICC (Commercial Products) | Black | Thermoplastic | Bronze | 155 C | -55 C | 300 VDC | 5 | 16 µin | 0.41 µm | Power | Solder | Panel Mount Through Hole | 1 | Gold | Board Side (4-40) | Receptacle Female Sockets | 3 | DB B | 5W5 | Combo D-Sub | ||||||||
Amphenol ICC (Commercial Products) | Black | Thermoplastic | 155 C | -55 C | 5 | Power | Free Hanging (In-Line) | 1 | Housing/Shell (Unthreaded) | Plug for Male Contacts | 3 | DB B | 5W5 | Combo D-Sub | Contacts Not Included | Grounding Indents | ||||||||||||
Amphenol ICC (Commercial Products) | Black | Thermoplastic | Bronze | 155 C | -55 C | 300 VDC | 5 | 16 µin | 0.41 µm | Power | Solder | Panel Mount Right Angle Through Hole | 1 | Gold | Board Side (4-40) | Receptacle Female Sockets | 21.46 mm | 0.845 in | 3 | DB B | 5W5 | Combo D-Sub | Board Lock Mounting Brackets | |||||
Amphenol ICC (Commercial Products) | Black | Thermoplastic | Bronze | 155 C | -55 C | 300 VDC | 5 | 16 µin | 0.41 µm | Power | Solder | Panel Mount Through Hole | 1 | Gold | Housing/Shell (Unthreaded) | Receptacle Female Sockets | 3 | DB B | 5W5 | Combo D-Sub | ||||||||
Amphenol ICC (Commercial Products) | Black | Thermoplastic | Bronze | 155 C | -55 C | 300 VDC | 5 | 16 µin | 0.41 µm | Power | Solder | Panel Mount Right Angle Through Hole | 1 | Gold | Board Side (4-40) | Receptacle Female Sockets | 9.52 mm | 0.375 in | 3 | DB B | 5W5 | Combo D-Sub | Board Lock Mounting Brackets | |||||
Amphenol ICC (Commercial Products) | Black | Thermoplastic | Bronze | 155 C | -55 C | 300 VDC | 5 | 16 µin | 0.41 µm | Power | Solder | Panel Mount Through Hole | 1 | Gold | Board Side (M3) | Receptacle Female Sockets | 3 | DB B | 5W5 | Combo D-Sub |
