8241 Series
Manufacturer: Belden Inc.
Beta
⌘K

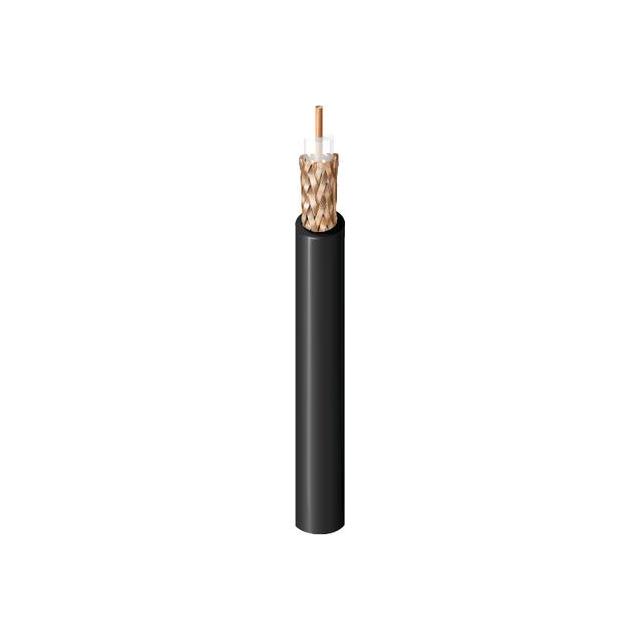

RG59/U TYPE COAX BLK
| Part | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Coverage | Operating Temperature [Max] | Operating Temperature [Min] | VoP, Velocity of Propagation | Conductor Material | Shield Material | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand | Wire Gauge | Jacket (Insulation) Material | Jacket Color | Shield Type | Cable Group | Cable Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 3.71 mm | 0.146 in | 95 % | 75 ░C | -30 ░C | 66 | Copper Coated Steel | Copper Bare | Video | 0.24 " | 6.1 mm | Solid | 23 AWG | Poly-Vinyl Chloride (PVC) | Black | Braid | RG-59 | Coaxial | ||
Belden Inc. | 3.71 mm | 0.146 in | 95 % | 75 ░C | -30 ░C | 66 | Copper Coated Steel | Copper Bare | Video | 0.24 " | 6.1 mm | Solid | 23 AWG | Poly-Vinyl Chloride (PVC) | Blue | Braid | RG-59 | Coaxial | 304.8 m | 1000 ft |
Belden Inc. | 3.71 mm | 0.146 in | 95 % | 75 ░C | -30 ░C | 66 | Copper Coated Steel | Copper Bare | Video | 0.24 " | 6.1 mm | Solid | 23 AWG | Poly-Vinyl Chloride (PVC) | Black | Braid | RG-59 | Coaxial | 304.8 m | 1000 ft |
