PR20C06HB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

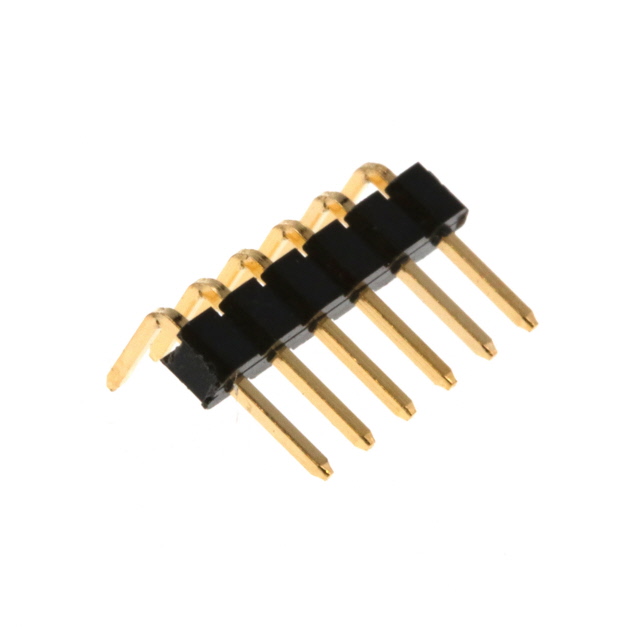

PIN HEADER, THR, SINGLE ROW, 2.0
| Part | Insulation Height [z] | Insulation Height [z] | Contact Length - Post [custom] | Contact Length - Post | Contact Shape | Insulation Color | Termination | Shrouding | Contact Finish - Mating | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Fastening Type | Connector Type | Mounting Type | Contact Finish Thickness - Mating | Contact Length - Mating | Contact Length - Mating | Number of Positions Loaded | Number of Positions | Pitch - Mating | Pitch - Mating | Contact Type | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | 2 mm | 0.079 in | 0.11 in | 2.79 mm | Square | Black | Solder | Unshrouded | Gold | Polyethylene | -55 C | 105 ░C | 1 | Push-Pull | Header | Right Angle Through Hole | Flash | 0.154 in | 3.91 mm | All | 6 | 0.079 " | 2 mm | Male Pin | Copper Zinc |
