TE150A1251 Series

Catalog

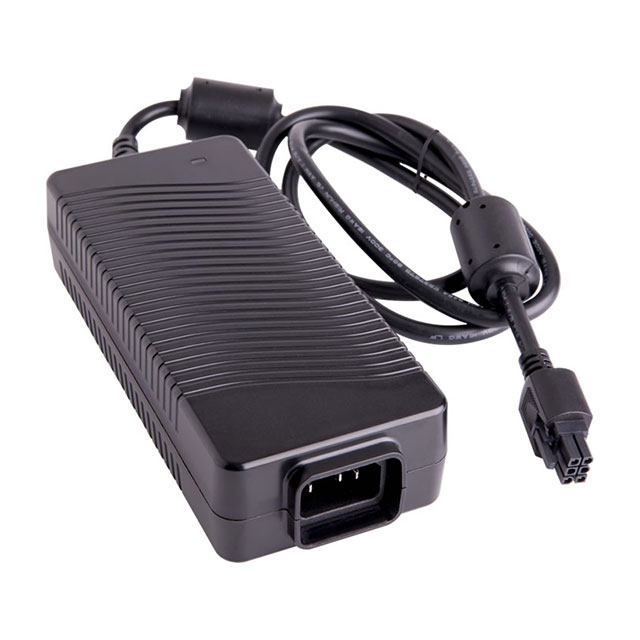

AC/DC DESKTOP ADAPTER 12V 150W

Part	Weight [custom]	Weight [custom]	Input Type	Efficiency	Approval Agency	Input Connector	No Load Power Consumption	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Current - Output (Max) [Max]	Form	Region Utilized	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Output Connector	Output Connector	Voltage - Output	Applications
SL POWER / Advanced Energy TE150A1251N01	700 g	1.543 lb	Cord (Sold Separately)	CoC Tier 2 Level VI	CE cULus D-Mark	IEC 320-C8	150 mW	6.85 "	2.83 "	174 mm	71.9 mm	1.5 in	38.1 mm	12.5 A	Desktop (Class II)	International	100 VAC	240 VAC	-20 ░C	70 °C	150 W	Rectangular	6 Position	12 V	ITE (Commercial)
SL POWER / Advanced Energy TE150A1251F01	700 g	1.543 lb	Cord (Sold Separately)	CoC Tier 2 Level VI	CE cULus D-Mark	IEC 320-C14	150 mW	6.85 "	2.83 "	174 mm	71.9 mm	1.5 in	38.1 mm	12.5 A	Desktop (Class I)	International	100 VAC	240 VAC	-20 ░C	70 °C	150 W	Rectangular	6 Position	12 V	ITE (Commercial)
