6135.0141 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

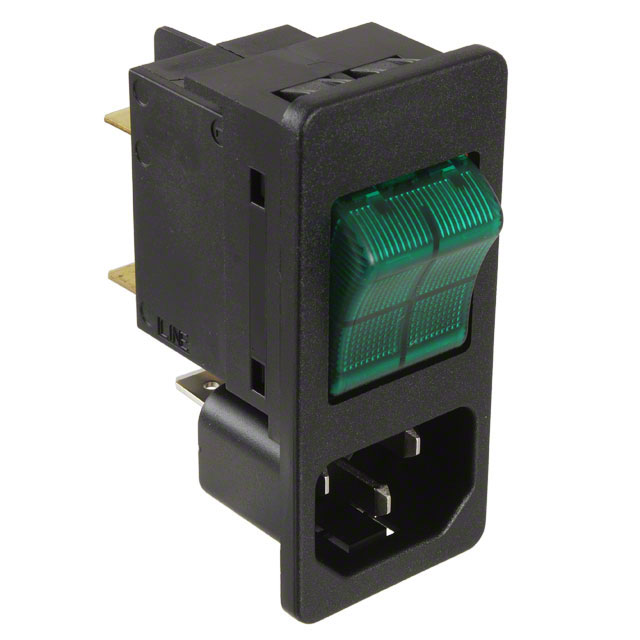

PWR ENT MOD RCPT IEC320-C14 PNL
| Part | Switch Features | Material Flammability Rating | Filter Type | Accomodates a Fuse | Termination | Termination | Termination | Voltage Rating - Appliance Inlet | Connector Style | Panel Thickness | Panel Thickness | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Approval Agency | Current Rating - Circuit Breaker | Ingress Protection | Mounting Type | Current Rating - Appliance Inlet | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | Circuit Breaker Illuminated Switch On-Off | UL94 V-0 | Unfiltered - Commercial | 6.3 mm | Quick Connect | 0.25 " | 250 VAC | IEC 320-C14 | 1.5 mm | 0.059 in | 27.4 mm | 59 mm | CCC cULus ENEC | 15 A | IP40 | Panel Mount Snap-In | 10 A | Receptacle Male Blades - Module | |
 SCHURTER Inc. | Circuit Breaker Illuminated Switch On-Off | UL94 V-0 | Unfiltered - Commercial | 6.3 mm | Quick Connect | 0.25 " | 250 VAC | IEC 320-C14 | 2 mm | 0.079 in | 27.4 mm | 59 mm | CCC cULus ENEC | 15 A | IP40 | Panel Mount Snap-In | 10 A | Receptacle Male Blades - Module |
