2378762 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

PCIE5,SMT,1.9TABX3,98P,30",WO ML

Part	Card Type	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Color	Number of Positions	Contact Type	Contact Finish	Read Out	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Card Thickness	Card Thickness	Mounting Type	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Termination Rows	Number of Rows	Contact Material	Features	Material - Insulation [custom]	Gender	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Contact Finish Thickness
TE Connectivity Raychem Cable Protection 2-2378762-3	PCI Express™	Solder	85 °C	-40 °C	Black	98	Cantilever	Gold	Dual	0.039 in	1 mm	0.76 Ám	30 Áin	0.062 in	1.57 mm	Surface Mount	38	11	2	2	Copper Alloy	Board Guide Locking Ramp Solder Retention	Plastic	Female
TE Connectivity Raychem Cable Protection 4-2378762-3	PCI Express™	Solder	85 °C	-40 °C	Black	98	Cantilever	Gold	Dual	0.039 in	1 mm	0.38 µm	15 µin			Surface Mount	38	11	2	2	Copper Alloy	Board Guide Solder Retention	Plastic	Female

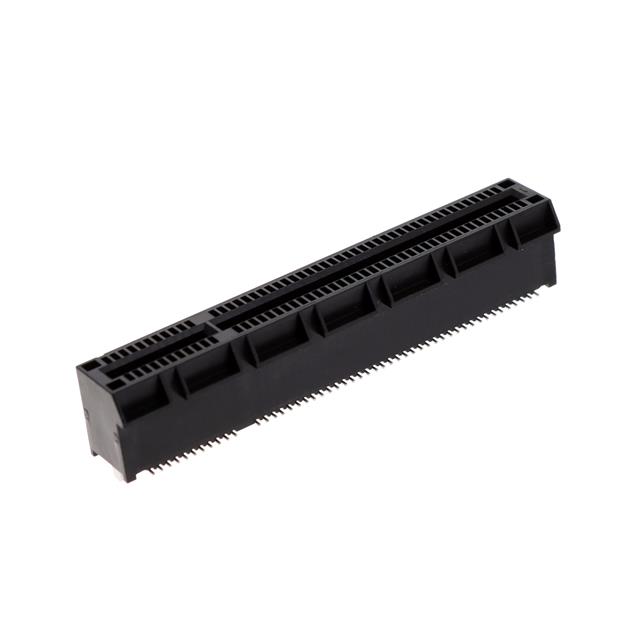

TE Connectivity Raychem Cable Protection 5-2378762-3	PCI Express™	Solder	85 °C	-40 °C	Black	98	Cantilever	Gold	Dual	0.039 in	1 mm	0.76 Ám	30 Áin	0.062 in	1.57 mm	Surface Mount	38	11	2	2	Copper Alloy	Board Guide Solder Retention	Plastic	Female
TE Connectivity Raychem Cable Protection 2-2378762-4	PCI Express™	Solder	85 °C	-40 °C	Black	164	Cantilever	Gold	Dual	0.039 in	1 mm	0.76 Ám	30 Áin	0.062 in	1.57 mm	Surface Mount			2	2	Copper Alloy	Board Guide Locking Ramp Solder Retention	Plastic	Female	71	11
TE Connectivity Raychem Cable Protection 3-2378762-8	PCI Express™	Solder	85 °C	-40 °C	Black	164	Cantilever	Gold	Dual	0.039 in	1 mm			0.062 in	1.57 mm	Surface Mount			2	2	Copper Alloy	Board Guide Locking Ramp Solder Retention	Plastic	Female	71	11	Flash
