282838 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERM BLK 3P SIDE ENTRY 10MM PCB

Part	Wire Termination	Contact Material - Plating [custom]	Screw Thread	Wire Gauge [Max]	Wire Gauge [Min]	Number of Levels	Torque - Screw	Torque - Screw	Mating Orientation	Clamp Material - Plating	Current	Features	Voltage	Pitch [x]	Pitch [x]	Positions Per Level	Mounting Type	Color	Screw Material - Plating
TE Connectivity Raychem Cable Protection 282838-3	Screw - Rising Cage Clamp	Brass - Tin Plated	M3	30 AWG	16 AWG	1	6 Lb-In	0.68 Nm	Horizontal with Board	Brass - Nickel Plated	13.5 A	Interlocking (Side)	600 V	0.394 in	10 mm	3	Through Hole	Green	Brass - Nickel Plated
TE Connectivity Raychem Cable Protection 282838-7	Screw - Rising Cage Clamp	Brass - Tin Plated	M3	30 AWG	16 AWG	1	6 Lb-In	0.68 Nm	Horizontal with Board	Brass - Nickel Plated	13.5 A	Interlocking (Side) Positions Stamped	600 V	0.394 in	10 mm	3	Through Hole	Green	Brass - Nickel Plated

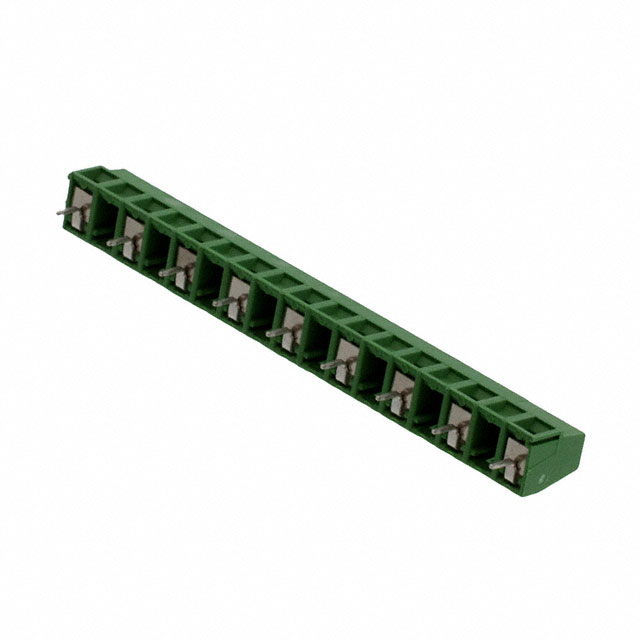

TE Connectivity Raychem Cable Protection 1-282838-0	Screw - Rising Cage Clamp	Brass - Tin Plated	M3	30 AWG	16 AWG	1	6 Lb-In	0.68 Nm	Horizontal with Board	Brass - Nickel Plated	13.5 A	Interlocking (Side)	600 V	0.394 in	10 mm	9	Through Hole	Green	Brass - Nickel Plated

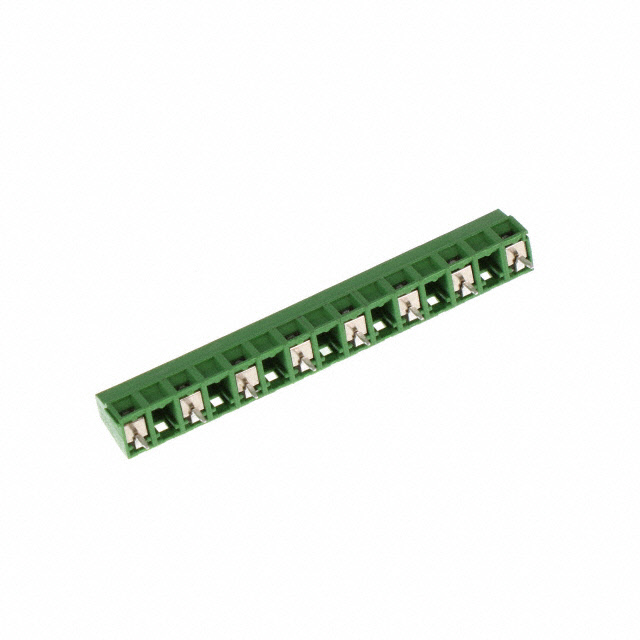

TE Connectivity Raychem Cable Protection 282838-9	Screw - Rising Cage Clamp	Brass - Tin Plated	M3	30 AWG	16 AWG	1	6 Lb-In	0.68 Nm	Horizontal with Board	Brass - Nickel Plated	13.5 A	Interlocking (Side)	600 V	0.394 in	10 mm	8	Through Hole	Green	Brass - Nickel Plated
TE Connectivity Raychem Cable Protection 282838-5	Screw - Rising Cage Clamp	Brass - Tin Plated	M3	30 AWG	16 AWG	1	6 Lb-In	0.68 Nm	Horizontal with Board	Brass - Nickel Plated	13.5 A	Interlocking (Side)	600 V	0.394 in	10 mm	5	Through Hole	Green	Brass - Nickel Plated
TE Connectivity Raychem Cable Protection 282838-4	Screw - Rising Cage Clamp	Brass - Tin Plated	M3	30 AWG	16 AWG	1	6 Lb-In	0.68 Nm	Horizontal with Board	Brass - Nickel Plated	13.5 A	Interlocking (Side)	600 V	0.394 in	10 mm	4	Through Hole	Green	Brass - Nickel Plated
