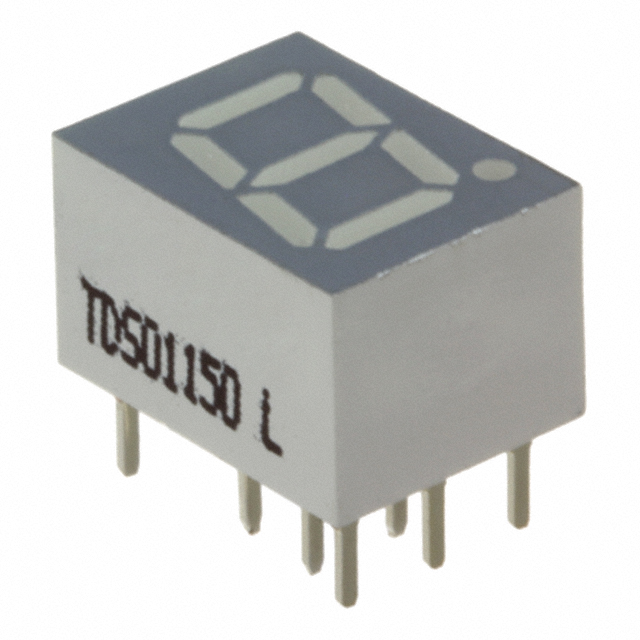

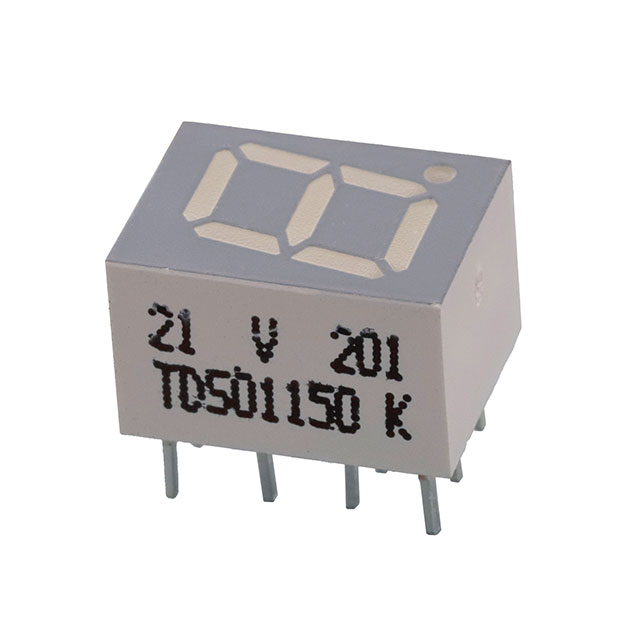

TDSO1150 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Beta
⌘K
DISPLAY 7-SEG 0.28" SGL ORG-RED
| Part | Digit/Alpha Size | Digit/Alpha Size | Common Pin | Color | Current - Test | Millicandela Rating | Wavelength - Peak | Display Type | Number of Characters [custom] | Voltage - Forward (Vf) (Typ) | Size / Dimension | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | 7 mm | 0.28 in | Common Anode | Orange-Red | 20 mA | 3.6 mcd | 630 nm | 7-Segment | 1 | 2 V | 6 mm 7.4 mm 9.9 mm | 0.389 in | 0.236 " | 0.291 " | |||
Vishay General Semiconductor - Diodes Division | 7 mm | 0.28 in | Common Cathode | Orange-Red | 20 mA | 3.7 mcd | 630 nm | 7-Segment | 1 | 2 V | 0.39 " | 0.283 in | 0.291 " | 7.2 mm | 7.4 mm | 9.9 mm | |
 Vishay General Semiconductor - Diodes Division | 7 mm | 0.28 in | Common Anode | Orange-Red | 20 mA | 3 mcd | 630 nm | 7-Segment | 1 | 2 V | 6 mm 7.4 mm 9.9 mm | 0.389 in | 0.236 " | 0.291 " |
