NPPC381 Series

Catalog

CONN HDR 38POS 0.1 GOLD PCB R/A

Part	Contact Finish Thickness - Post	Insulation Material	Contact Shape	Contact Material	Contact Finish Thickness - Mating	Termination	Contact Finish - Mating	Voltage Rating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Fastening Type	Number of Positions	Mounting Type	Insulation Color	Current Rating (Amps)	Contact Finish - Post	Insulation Height	Insulation Height	Contact Type	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]
Sullins Connector Solutions NPPC381LGBN-RC	Flash	Nylon 6T Polyamide (PA6T)	Square	Phosphor Bronze	Flash	Solder	Gold	250 V	All	0.1 "	2.54 mm	Push-Pull	38	Right Angle Through Hole	Black	3 A	Gold	0.1 in	2.54 mm	Female Socket	UL94 V-0	0.124 in	3.15 mm	-40 C	105 ░C	1	Header
Sullins Connector Solutions NPPC381LFBN-RC	Flash	Nylon 6T Polyamide (PA6T)	Square	Phosphor Bronze	Flash	Solder	Gold	250 V	All	0.1 "	2.54 mm	Push-Pull	38	Through Hole	Black	3 A	Gold	0.335 "	8.51 mm	Female Socket	UL94 V-0			-40 C	105 ░C	1	Header	0.126 "	3.2 mm

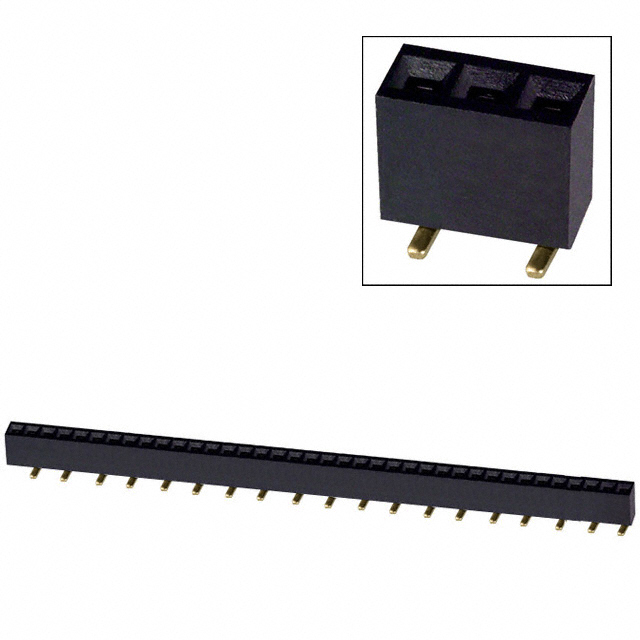

Sullins Connector Solutions NPPC381KFXC-RC	Flash	Nylon 6T Polyamide (PA6T)	Square	Phosphor Bronze	Flash	Solder	Gold	250 V	All	0.1 "	2.54 mm	Push-Pull	38	Surface Mount	Black	3 A	Gold	0.28 in	7.1 mm	Female Socket	UL94 V-0			-40 C	105 ░C	1	Header Top or Bottom Entry
