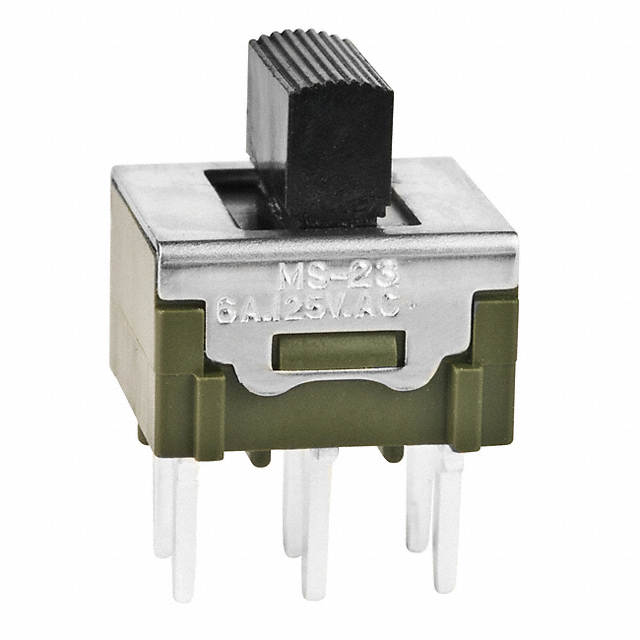

MS23BNW Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH SLIDE DPDT 6A 125V
| Part | Actuator Material | Electrical Life | Mechanical Life | Switch Travel | Circuit | Current Rating (Amps) | Mounting Type | Switch Function | Contact Timing | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Features | Contact Finish | Actuator Length [x] | Contact Material | Actuator Type | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | Polybutylene Terephthalate (PBT) Glass Filled | 25000 Steps | 100000 Cycles | 3.5 mm | DPDT | 6 A | Through Hole | On-Off-On | Non-Shorting (BBM) | PC Pin | 85 °C | -30 ░C | Epoxy Sealed Terminals | Silver | 5.1 mm | Silver Alloy | Standard | 125 V |
