1559 Series

Catalog

WIRE, HOOK UP MIL-W-76B TYPE MW, PVC, YELLOW, 14 AWG, 2.091 MM², 100 FT

Part	Qualification	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Cable Type	Jacket Color	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Wire Gauge	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length
ALPHA WIRE 1559 YL005	MIL-W-76B Type MW	0.106 in	2.69 mm	Hook-Up	Yellow	Copper Tinned	41	30	1 kV	Poly-Vinyl Chloride (PVC)	0.41 mm	0.016 in	100 ft	30.5 m	14.5 AWG	80 °C	-40 C
ALPHA WIRE 1559 OR001	MIL-W-76B Type MW	0.106 in	2.69 mm	Hook-Up	Orange	Copper Tinned	41	30	1 kV	Poly-Vinyl Chloride (PVC)	0.41 mm	0.016 in			14.5 AWG	80 °C	-40 C	304.8 m	1000 ft

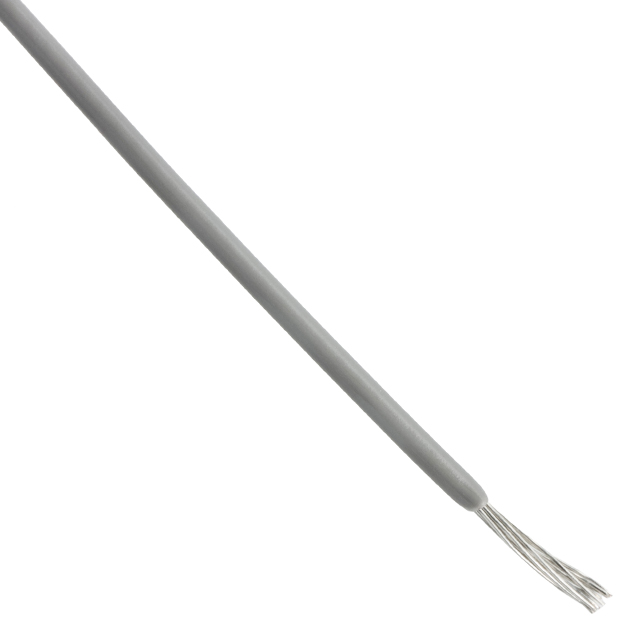

ALPHA WIRE 1559 SL005	MIL-W-76B Type MW	0.106 in	2.69 mm	Hook-Up	Slate	Copper Tinned	41	30	1 kV	Poly-Vinyl Chloride (PVC)	0.41 mm	0.016 in	100 ft	30.5 m	14.5 AWG	80 °C	-40 C
ALPHA WIRE 1559 GR001	MIL-W-76B Type MW	0.106 in	2.69 mm	Hook-Up	Green	Copper Tinned	41	30	1 kV	Poly-Vinyl Chloride (PVC)	0.41 mm	0.016 in			14.5 AWG	80 °C	-40 C	304.8 m	1000 ft
ALPHA WIRE 1559 BL005	MIL-W-76B Type MW	0.106 in	2.69 mm	Hook-Up	Blue	Copper Tinned	41	30	1 kV	Poly-Vinyl Chloride (PVC)	0.41 mm	0.016 in	100 ft	30.5 m	14.5 AWG	80 °C	-40 C
ALPHA WIRE 1559 RD001	MIL-W-76B Type MW	0.106 in	2.69 mm	Hook-Up	Red	Copper Tinned	41	30	1 kV	Poly-Vinyl Chloride (PVC)	0.41 mm	0.016 in			14.5 AWG	80 °C	-40 C	304.8 m	1000 ft
ALPHA WIRE 1559 SL001	MIL-W-76B Type MW	0.106 in	2.69 mm	Hook-Up	Slate	Copper Tinned	41	30	1 kV	Poly-Vinyl Chloride (PVC)	0.41 mm	0.016 in			14.5 AWG	80 °C	-40 C	304.8 m	1000 ft
ALPHA WIRE 1559 BL001	MIL-W-76B Type MW	0.106 in	2.69 mm	Hook-Up	Blue	Copper Tinned	41	30	1 kV	Poly-Vinyl Chloride (PVC)	0.41 mm	0.016 in			14.5 AWG	80 °C	-40 C	304.8 m	1000 ft
ALPHA WIRE 1559 VI001	MIL-W-76B Type MW	0.106 in	2.69 mm	Hook-Up	Violet	Copper Tinned	41	30	1 kV	Poly-Vinyl Chloride (PVC)	0.41 mm	0.016 in			14.5 AWG	80 °C	-40 C	304.8 m	1000 ft
ALPHA WIRE 1559 OR005	MIL-W-76B Type MW	0.106 in	2.69 mm	Hook-Up	Orange	Copper Tinned	41	30	1 kV	Poly-Vinyl Chloride (PVC)	0.41 mm	0.016 in	100 ft	30.5 m	14.5 AWG	80 °C	-40 C
