8308 Series
Manufacturer: Belden Inc.
Beta
⌘K

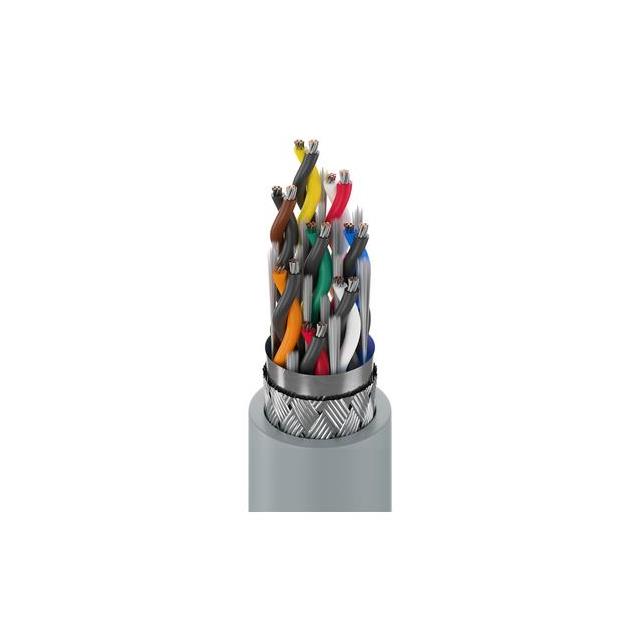

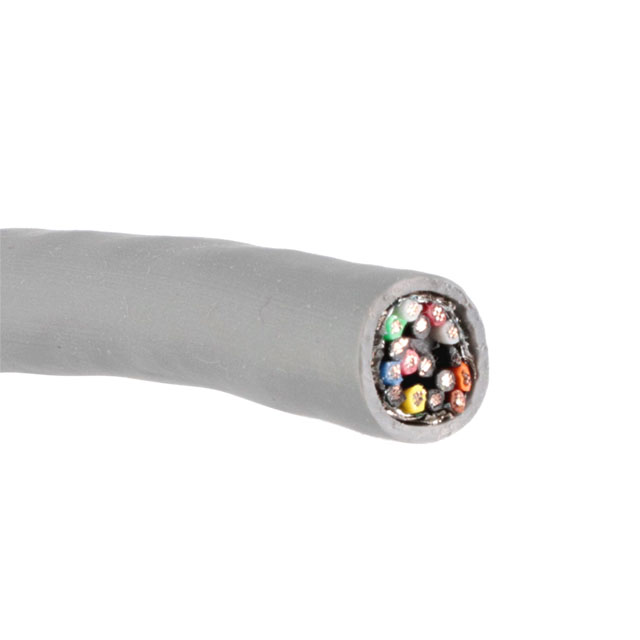

MULTI-PAIR 16COND 22AWG
| Part | Shield Coverage | Shield Material | Voltage | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Jacket Color | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Length | Length | Ratings | Number of Conductors | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 300 VDC | 22 AWG | 80 °C | -30 ░C | Multi-Pair | Poly-Vinyl Chloride (PVC) | 9.75 mm | 0.384 " | Poly-Vinyl Chloride (PVC) | Chrome | Braid Foil | 1.016 mm | 0.04 in | Copper Tinned | 30 AWG | 7 | Computer | 152.4 m | 500 ft | UL Style 2464 | 16 | ||
 Belden Inc. | 65 % 100 % | Aluminum Copper Tinned | 300 VDC | 22 AWG | 80 °C | -30 ░C | Multi-Pair | Poly-Vinyl Chloride (PVC) | 9.75 mm | 0.384 " | Poly-Vinyl Chloride (PVC) | Chrome | Braid Foil | 1.016 mm | 0.04 in | Copper Tinned | 30 AWG | 7 | Computer | UL Style 2464 | 16 | 100 ft | 30.5 m |
