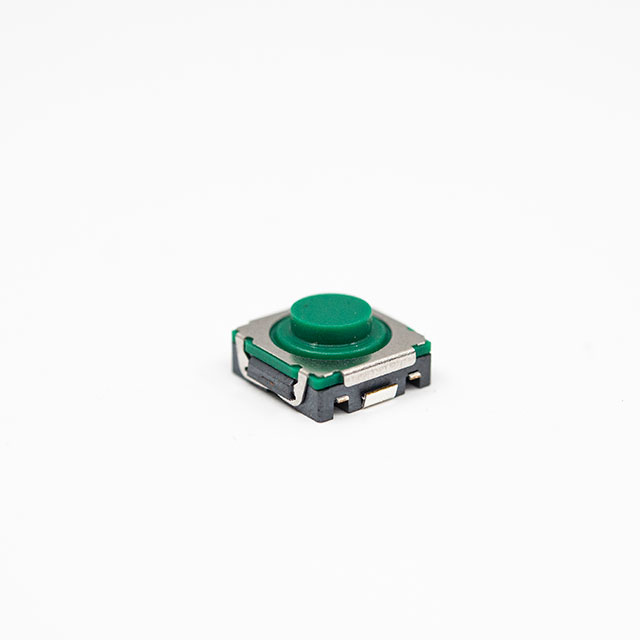

TL9320 Series
Manufacturer: E-Switch
Beta
⌘K
TACTILE SWITCH, GULL WING, TOP ACTUATED, SURFACE MOUNT, ROUND BUTTON, 400 GF, 50MA AT 16VDC
| Part | Switch Travel | Mechanical Life | Switch Function | Termination Style | Actuator Type | Actuator Orientation | Illumination | Circuit | Outline [y] | Outline [x] | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Actuator Height off PCB, Vertical [z] | Mounting Type | Operating Force | Contact Rating @ Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 0.9 mm | 500000 Cycles | Off-Mom | Gull Wing | Standard | Top Actuated | Non-Illuminated | SPST-NO | 8.4 mm | 8.4 mm | -20 ░C | 70 °C | IP67 - Dust Tight Waterproof | 3.95 mm | Surface Mount | 400 gf | 0.05 A 16 VDC |
