CWR-170 Series

Catalog

STANDARD CARD EDGE CONNECTORS IDC COMMERCIAL CARD EDGE

Part	Color	Card Thickness [Max]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions [custom]	Mounting Type	Read Out	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Gender	Contact Material	Contact Type	Pitch	Pitch	Termination	Card Type	Contact Finish	Material - Insulation	Number of Positions/Bay/Row	Number of Positions

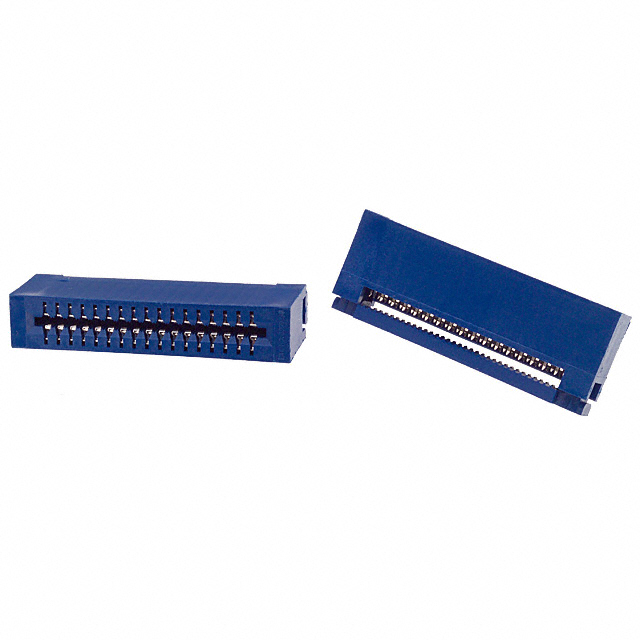

CW Industries CWR-170-34-0203	Blue	0.07 in	0.032 in	0.81 mm	1.78 mm	-55 C	125 °C	34	Free Hanging (In-Line)	Dual	2	2.54 µm	100 µin	17	Female	Phosphor Bronze	Cantilever	0.1 "	2.54 mm	IDC	Non Specified - Dual Edge	Tin	Thermoplastic

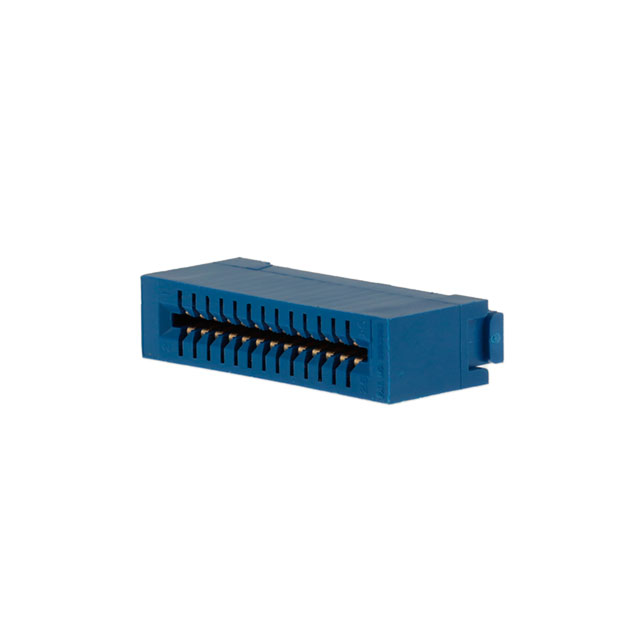

CW Industries CWR-170-26-0000	Blue	0.07 in	0.032 in	0.81 mm	1.78 mm	-55 C	125 °C		Free Hanging (In-Line)	Dual	2	0.25 Ám	10 Áin		Female	Phosphor Bronze	Cantilever	0.1 "	2.54 mm	IDC	Non Specified - Dual Edge	Gold	Thermoplastic	13	26

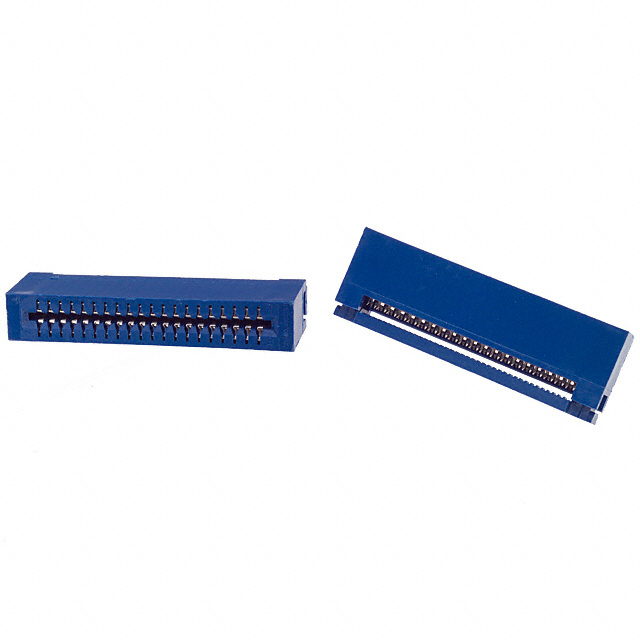

CW Industries CWR-170-40-0021	Blue					-55 C	125 °C		Free Hanging (In-Line)	Dual	2	0.76 Ám	30 Áin		Female	Phosphor Bronze		0.1 "	2.54 mm	IDC	Non Specified - Dual Edge	Gold	Thermoplastic		40
CW Industries CWR-170-34-0003	Blue	0.07 in	0.032 in	0.81 mm	1.78 mm	-55 C	125 °C	34	Free Hanging (In-Line)	Dual	2	2.54 µm	100 µin	17	Female	Phosphor Bronze	Cantilever	0.1 "	2.54 mm	IDC	Non Specified - Dual Edge	Tin-Lead	Thermoplastic
CW Industries CWR-170-34-0021	Blue					-55 C	125 °C	34	Free Hanging (In-Line)	Dual	2	0.76 Ám	30 Áin		Female	Phosphor Bronze		0.1 "	2.54 mm	IDC	Non Specified - Dual Edge	Gold	Thermoplastic
CW Industries CWR-170-20-0000	Blue	0.07 in	0.032 in	0.81 mm	1.78 mm	-55 C	125 °C		Free Hanging (In-Line)	Dual	2	0.25 Ám	10 Áin		Female	Phosphor Bronze	Cantilever	0.1 "	2.54 mm	IDC	Non Specified - Dual Edge	Gold	Thermoplastic	10	20
CW Industries CWR-170-10-0003	Blue	0.07 in	0.032 in	0.81 mm	1.78 mm	-55 C	125 °C		Free Hanging (In-Line)	Dual	2	2.54 µm	100 µin		Female	Phosphor Bronze	Cantilever	0.1 "	2.54 mm	IDC	Non Specified - Dual Edge	Tin-Lead	Thermoplastic	5	10
CW Industries CWR-170-26-0021
CW Industries CWR-170-10-0203	Blue	0.07 in	0.032 in	0.81 mm	1.78 mm	-55 C	125 °C		Free Hanging (In-Line)	Dual	2	2.54 µm	100 µin		Female	Phosphor Bronze	Cantilever	0.1 "	2.54 mm	IDC	Non Specified - Dual Edge	Tin	Thermoplastic	5	10
CW Industries CWR-170-26-0003	Blue	0.07 in	0.032 in	0.81 mm	1.78 mm	-55 C	125 °C		Free Hanging (In-Line)	Dual	2	2.54 µm	100 µin		Female	Phosphor Bronze	Cantilever	0.1 "	2.54 mm	IDC	Non Specified - Dual Edge	Tin-Lead	Thermoplastic	13	26
