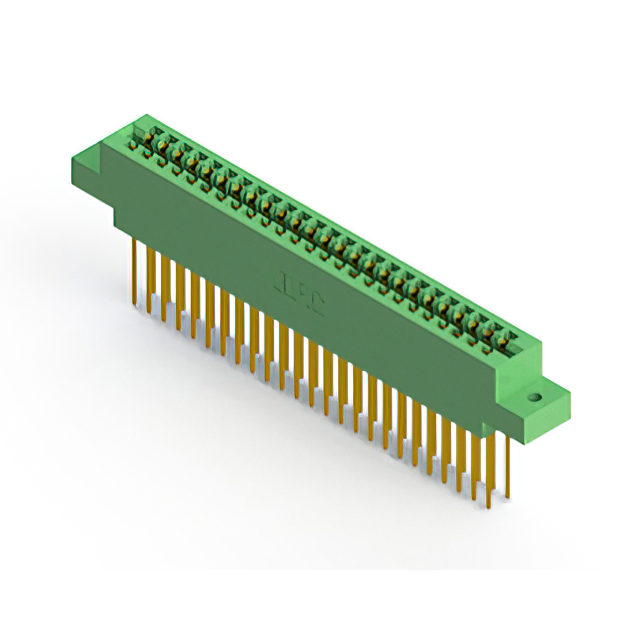

317-050 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 50POS 0.156
| Part | Material - Insulation | Read Out | Color | Card Type | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows [custom] | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Contact Type | Number of Positions/Bay/Row | Contact Finish | Contact Material | Mounting Type | Card Thickness [Max] | Card Thickness [Min] | Termination | Flange Feature | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | Dual | Green | Non Specified - Dual Edge | 50 | -65 ░C | 125 °C | 2 | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Cantilever | 25 | Gold | Copper Alloy | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | 4-40 Threaded Insert Top Mount Opening | Female |
 EDAC Inc. | Diallyl Phthalate (DAP) | Dual | Green | Non Specified - Dual Edge | 50 | -65 ░C | 125 °C | 2 | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Cantilever | 25 | Gold | Copper Alloy | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Female | |
 EDAC Inc. | Diallyl Phthalate (DAP) | Dual | Green | Non Specified - Dual Edge | 50 | -65 ░C | 125 °C | 2 | 0.25 Ám | 10 Áin | 3.96 mm | 0.156 in | Cantilever | 25 | Gold | Copper Alloy | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | M3 Threaded Insert Top Mount Opening | Female |
