EC6AW Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

DC DC CONVERTER 5V 8W

Part	Applications	Approval Agency	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Voltage - Input (Min) [Min]	Power (Watts)	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Features	Control Features	Package / Case	Voltage - Isolation	Current - Output (Max) [Max]	Number of Outputs	Type	Efficiency	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Max]
Cincon Electronics Co. LTD EC6AW-48S05	ITE (Commercial) Railway	CE	75 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	5 V	18 V	8 W	50155 60950-1	-40 °C	85 °C	Through Hole	OCP OVP Remote On/Off SCP UVLO	Active High Enable	24-DIP Module 9 Leads	1.5 kV	1.6 A	1	Isolated Module	83 %
Cincon Electronics Co. LTD EC6AW-24D05	ITE (Commercial) Railway	CE	36 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	5 V	9 V	8 W	50155 60950-1	-40 °C	85 °C	Through Hole	OCP OVP Remote On/Off SCP UVLO	Active High Enable	24-DIP Module 9 Leads	1.5 kV		2	Isolated Module		-5 V	800 mA	800 mA
Cincon Electronics Co. LTD EC6AW-48S15	ITE (Commercial) Railway	CE	75 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	15 V	18 V	8 W	50155 60950-1	-40 °C	85 °C	Through Hole	OCP OVP Remote On/Off SCP UVLO	Active High Enable	24-DIP Module 9 Leads	1.5 kV	530 mA	1	Isolated Module	86 %
Cincon Electronics Co. LTD EC6AW-24S33	ITE (Commercial) Railway	CE	36 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	3.3 V	9 V	6.6 W	50155 60950-1	-40 °C	85 °C	Through Hole	OCP OVP Remote On/Off SCP UVLO	Active High Enable	24-DIP Module 9 Leads	1.5 kV	2 A	1	Isolated Module	80 %

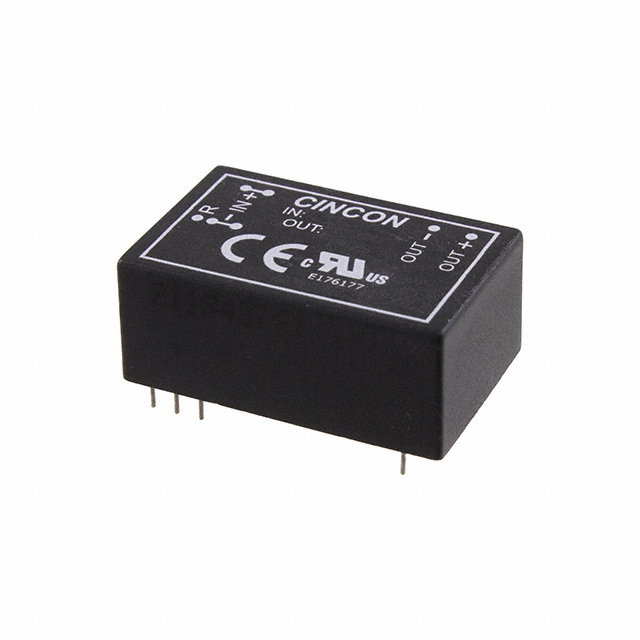

Cincon Electronics Co. LTD EC6AW-110D15	ITE (Commercial) Railway	CE cURus	160 V	0.8 "	0.5 in	31.8 mm	12.7 mm	20.3 mm	1.25 in	15 V	43 V	10 W	50155 60950-1	-40 °C	85 °C	Through Hole	OCP OVP Remote On/Off SCP UVLO	Active High Enable	24-DIP Module 9 Leads	3000 V		2	Isolated Module	87.5 %	-15 V	333 mA

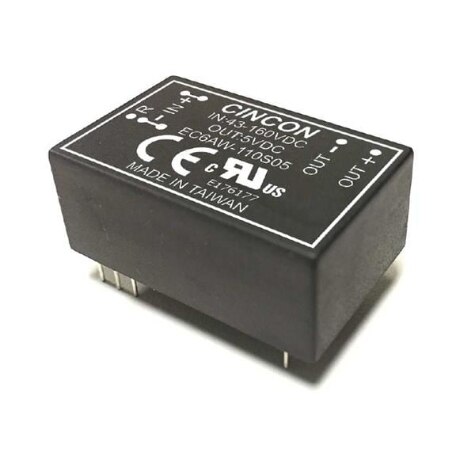

Cincon Electronics Co. LTD EC6AW-110S05	ITE (Commercial) Railway	CE cURus	160 V	0.8 "	0.5 in	31.8 mm	12.7 mm	20.3 mm	1.25 in	5 V	43 V	10 W	50155 60950-1	-40 °C	85 °C	Through Hole	OCP OVP Remote On/Off SCP UVLO	Active High Enable	24-DIP Module 9 Leads	3000 V	2 A	1	Isolated Module	87 %
Cincon Electronics Co. LTD EC6AW-24S05	ITE (Commercial) Railway	CE	36 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	5 V	9 V	8 W	50155 60950-1	-40 °C	85 °C	Through Hole	OCP OVP Remote On/Off SCP UVLO	Active High Enable	24-DIP Module 9 Leads	1.5 kV	1.6 A	1	Isolated Module
Cincon Electronics Co. LTD EC6AW-24D15	ITE (Commercial) Railway	CE	36 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	15 V	9 V	8 W	50155 60950-1	-40 °C	85 °C	Through Hole	OCP OVP Remote On/Off SCP UVLO	Active High Enable	24-DIP Module 9 Leads	1.5 kV	265 mA	2	Isolated Module	85 %	-15 V			265 mA
Cincon Electronics Co. LTD EC6AW-110D05	ITE (Commercial) Railway	CE cURus	160 V	0.8 "	0.5 in	31.8 mm	12.7 mm	20.3 mm	1.25 in	5 V	43 V	10 W	50155 60950-1	-40 °C	85 °C	Through Hole	OCP OVP Remote On/Off SCP UVLO	Active High Enable	24-DIP Module 9 Leads	3000 V		2	Isolated Module	85 %	-5 V	1 A
Cincon Electronics Co. LTD EC6AW-48S33	ITE (Commercial) Railway	CE	75 V	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	3.3 V	18 V	6.6 W	50155 60950-1	-40 °C	85 °C	Through Hole	OCP OVP Remote On/Off SCP UVLO	Active High Enable	24-DIP Module 9 Leads	1.5 kV	2 A	1	Isolated Module	80 %
