PJT-18 Series
Manufacturer: Delta Electronics
Beta
⌘K
AC/DC CONVERTER 18V 40W
| Part | Efficiency | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output 1 | Applications | Current - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Features | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Isolation | Mounting Type | Type | Number of Outputs | Power (Watts) | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

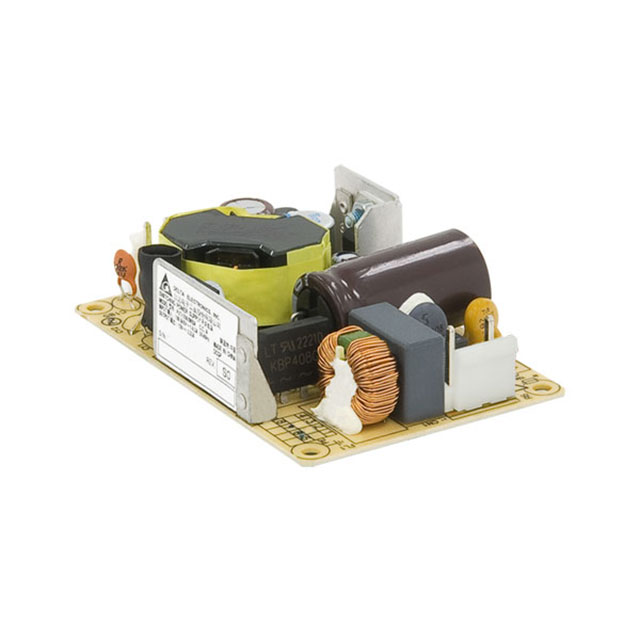

 Delta Electronics | 86 % | 264 VAC | 90 VAC | 18 V | ITE (Commercial) | 2.22 A | 70 °C | -10 °C | CB CE cURus TUV | Universal Input | 0.9 in | 76.2 mm | 2 in | 22.9 mm | 50.8 mm | 3 " | 3000 V | Chassis Mount | Open Frame | 1 | 40 W | ||
 Delta Electronics | 88 % | 264 VAC | 90 VAC | 18 V | ITE (Commercial) | 3.61 A | 70 °C | -10 °C | CB CE cURus TUV | Universal Input | 1.18 in | 101.6 mm | 2 in | 4 " | 3000 V | Chassis Mount | Open Frame | 1 | 50.8 mm | 30 mm |
