PS2514L-1 Series

High-speed Switching/High Isolation Voltage Photocoupler Series

Manufacturer: Renesas Electronics Corporation

Catalog

High-speed Switching/High Isolation Voltage Photocoupler Series

Part	Input Type	Current - Output / Channel [custom]	Mounting Type	Supplier Device Package	Voltage - Output (Max) [Max]	Voltage - Forward (Vf) (Typ)	Output Type	Current - DC Forward (If) (Max) [Max]	Turn On / Turn Off Time (Typ)	Turn On / Turn Off Time (Typ)	Current Transfer Ratio (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Vce Saturation (Max) [Max]	Current Transfer Ratio (Max)	Package / Case	Number of Channels	Output Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]

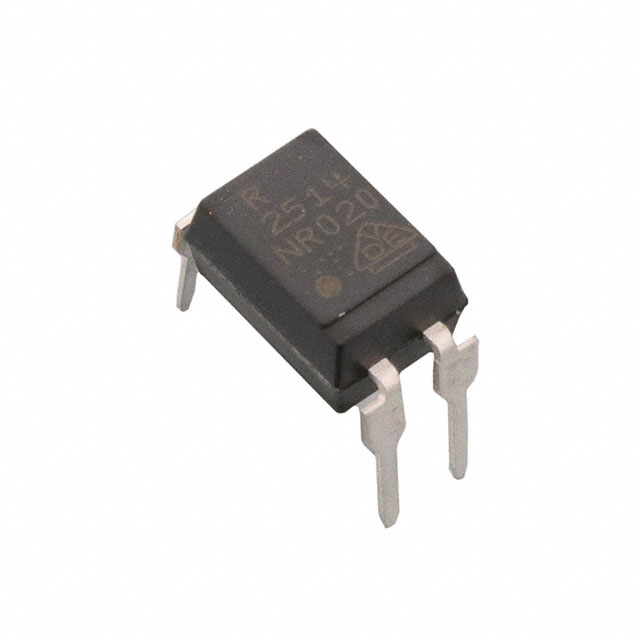

Renesas Electronics Corporation PS2514-1Y-V-A	DC	20 mA	Through Hole	4-DIP	40 V	1.1 V	1.81 mOhm	30 mA	15 µs	15 µs	50 %	100 °C	-55 °C	350 mV	200 %	4-DIP (0.300" 7.62mm)	1
Renesas Electronics Corporation PS2514L-1Y-V-A	DC	20 mA	Surface Mount	4-SMD	40 V	1.1 V	1.81 mOhm	30 mA	15 µs	15 µs	50 %	100 °C	-55 °C	350 mV	200 %	4-SMD Gull Wing	1
Renesas Electronics Corporation PS2514L-1Y-F3-A	DC	20 mA	Surface Mount	4-SMD	40 V	1.1 V		30 mA			50 %	100 °C	-55 °C	350 mV	200 %	4-SMD Gull Wing	1	Darlington	15 µs	15 µs

Catalog

High-speed Switching/High Isolation Voltage Photocoupler Series

Description

The PS2514-1 and PS2514L-1 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor, enabling relatively high switching speed with a high load resistor of several kΩ. The PS2514-1 is in a plastic DIP (Dual In-line Package) and the PS2514L-1 is a lead bending type (Gull-wing) for surface mount.
