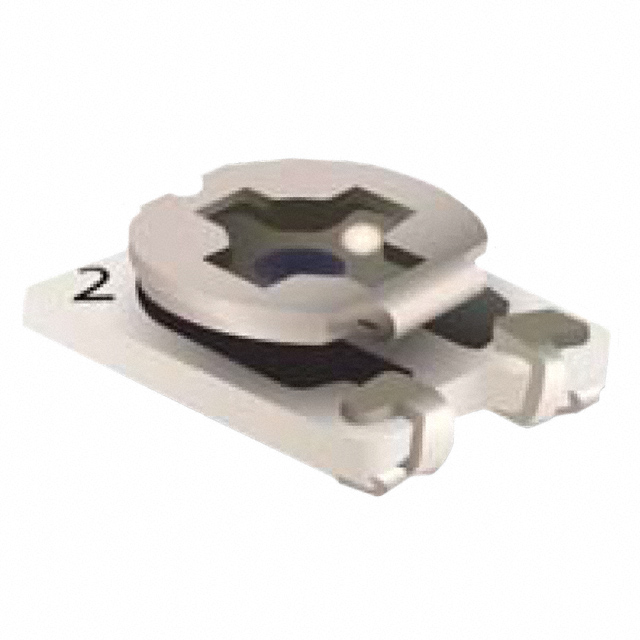

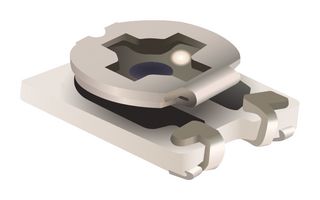

TC42X Series
Manufacturer: Bourns Inc.
Beta
⌘K
RES CERMET TRIMMER 1M OHM 25% 0.1W(1/10W) 1(ELEC)/1(MECH)TURNS (2.2 X 2.8 X 0.8MM) FOOTPRINT SMD T/R
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Resistance | Adjustment Type | Termination Style | Temperature Coefficient | Number of Turns | Mounting Type | Power (Watts) | Power (Watts) | Resistive Material | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 0.102 " | 0.087 " | 2.6 mm | 2.2 mm | 1 MOhms | Top Adjustment | J Lead | 250 ppm/°C | 1 | Surface Mount | 0.1 W | 0.1 W | Cermet | 25 % |
 Bourns Inc. | 0.102 " | 0.087 " | 2.6 mm | 2.2 mm | 470 kOhms | Top Adjustment | J Lead | 250 ppm/°C | 1 | Surface Mount | 0.1 W | 0.1 W | Cermet | 25 % |
Bourns Inc. | 0.102 " | 0.087 " | 2.6 mm | 2.2 mm | 2200 Ohms | Top Adjustment | J Lead | 250 ppm/°C | 1 | Surface Mount | 0.1 W | 0.1 W | Cermet | 25 % |
Bourns Inc. | 0.102 " | 0.087 " | 2.6 mm | 2.2 mm | 4.7 kOhms | Top Adjustment | J Lead | 250 ppm/°C | 1 | Surface Mount | 0.1 W | 0.1 W | Cermet | 25 % |
Bourns Inc. | 0.102 " | 0.087 " | 2.6 mm | 2.2 mm | 2 kOhms | Top Adjustment | J Lead | 250 ppm/°C | 1 | Surface Mount | 0.1 W | 0.1 W | Cermet | 25 % |
 Bourns Inc. | 0.102 " | 0.087 " | 2.6 mm | 2.2 mm | 20 kOhms | Top Adjustment | J Lead | 250 ppm/°C | 1 | Surface Mount | 0.1 W | 0.1 W | Cermet | 25 % |
Bourns Inc. | 0.102 " | 0.087 " | 2.6 mm | 2.2 mm | Top Adjustment | J Lead | 250 ppm/°C | 1 | Surface Mount | 0.1 W | 0.1 W | Cermet | 25 % | |
Bourns Inc. | 0.102 " | 0.087 " | 2.6 mm | 2.2 mm | 47000 Ohms | Top Adjustment | J Lead | 250 ppm/°C | 1 | Surface Mount | 0.1 W | 0.1 W | Cermet | 25 % |
Bourns Inc. | 0.102 " | 0.087 " | 2.6 mm | 2.2 mm | 3300 Ohms | Top Adjustment | J Lead | 250 ppm/°C | 1 | Surface Mount | 0.1 W | 0.1 W | Cermet | 25 % |
Bourns Inc. | 0.102 " | 0.087 " | 2.6 mm | 2.2 mm | 5 kOhms | Top Adjustment | J Lead | 250 ppm/°C | 1 | Surface Mount | 0.1 W | 0.1 W | Cermet | 25 % |
