PKU421 Series
Manufacturer: Flex Power Modules
Beta
⌘K

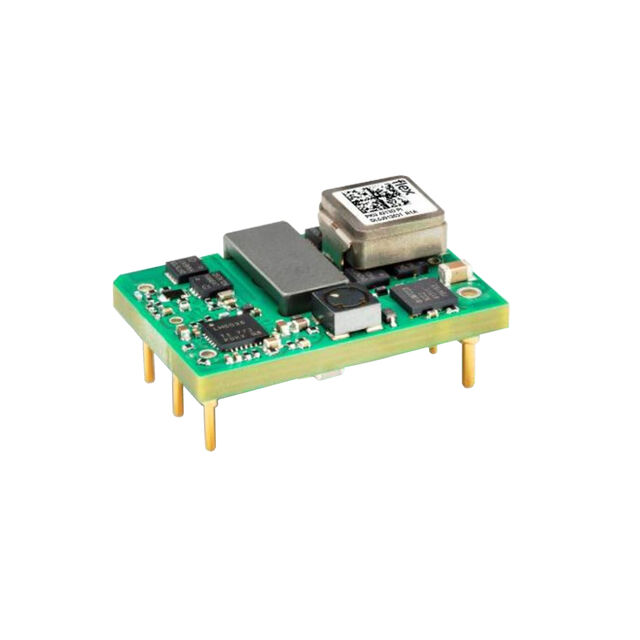

DC DC CONVERTER 10.4V 260W
| Part | Standard Number | Features | Voltage - Input (Max) | Mounting Type | Operating Temperature (Min) | Operating Temperature (Max) | Power (Watts) | Voltage - Isolation | Size / Dimension Width | Size / Dimension Height | Size / Dimension Length | Applications | Control Features | Package / Case | Current - Output (Max) | Type | Number of Outputs | Voltage - Output 1 | Approval Agency | Package Name | Voltage - Input (Min) | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Flex Power Modules | 62368-1 | Adjustable Output Remote On/Off | 60 V | Through Hole | -40 °C | 125 °C | 260 W | 2.25 kV | 0.9 in | 0.44 in | 1.3 in | ITE (Commercial) | Active Low Enable | Sixteenth Brick | 25 A | Intermediate Bus Converter | 1 | 10.4 V | CB CSA IEC TUV UL | Sixteenth Brick | 36 V | 96.1 % |
 Flex Power Modules | 62368-1 | Adjustable Output Remote On/Off Remote Sense | 75 V | Through Hole | -40 °C | 125 °C | 180 W | 2.25 kV | 0.9 in | 0.44 in | 1.3 in | ITE (Commercial) | Active Low Enable | Sixteenth Brick | 15 A | Isolated Module | 1 | 12 V | CB CSA IEC TUV UL | Sixteenth Brick | 36 V | 94.6 % |
