2842111 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

10P,2MM,BRK HDR,SRRT,2.8,0.38AU,

Part	Fastening Type	Contact Finish - Post	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Contact Length - Post [x]	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Insulation Color	Mounting Type	Current Rating (Amps)	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Termination	Contact Material	Number of Positions	Contact Shape	Contact Type	Contact Length - Mating	Contact Length - Mating	Insulation Material	Voltage Rating	Pitch - Mating [x]	Pitch - Mating [x]	Number of Rows

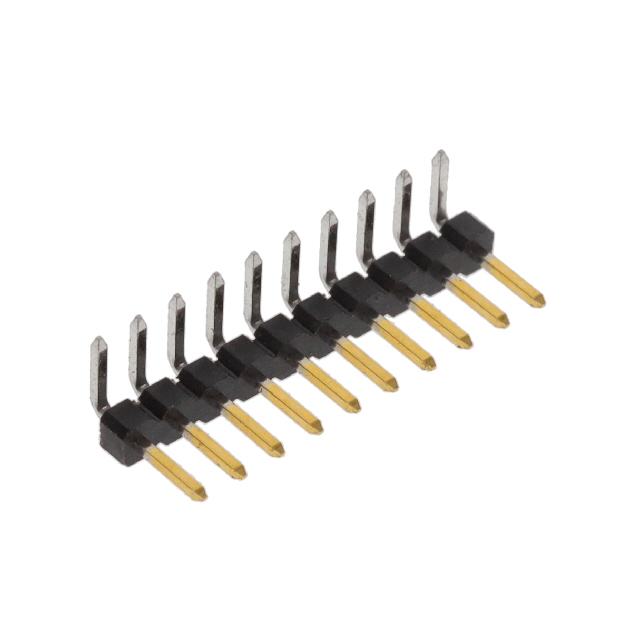

TE Connectivity Raychem Cable Protection 1-2842111-0	Push-Pull	Tin	All	1.5 mm	0.059 "	2 çm	78.7 çin	Unshrouded	0.11 in	2.79 mm	125 °C	-40 °C	Gold	Black	Through Hole Right Angle	2 A	UL94 V-0	15 µin	0.38 µm	Breakaway Header	Solder	Copper Alloy	10	Square	Male Pin	4 mm	0.157 in	Thermoplastic	125 VAC	0.079 in	2 mm	1

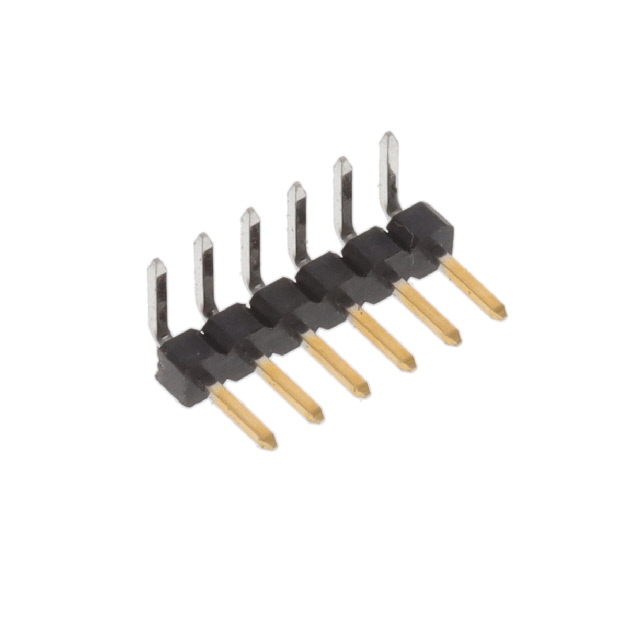

TE Connectivity Raychem Cable Protection 2842111-6	Push-Pull	Tin	All	1.5 mm	0.059 "	2 çm	78.7 çin	Unshrouded	0.11 in	2.79 mm	125 °C	-40 °C	Gold	Black	Through Hole Right Angle	2 A	UL94 V-0	15 µin	0.38 µm	Breakaway Header	Solder	Copper Alloy	6	Square	Male Pin	4 mm	0.157 in	Thermoplastic	125 VAC	0.079 in	2 mm	1
TE Connectivity Raychem Cable Protection 2842111-4	Push-Pull	Tin	All	1.5 mm	0.059 "	2 çm	78.7 çin	Unshrouded	0.11 in	2.79 mm	125 °C	-40 °C	Gold	Black	Through Hole Right Angle	2 A	UL94 V-0	15 µin	0.38 µm	Breakaway Header	Solder	Copper Alloy	4	Square	Male Pin	4 mm	0.157 in	Thermoplastic	125 VAC	0.079 in	2 mm	1

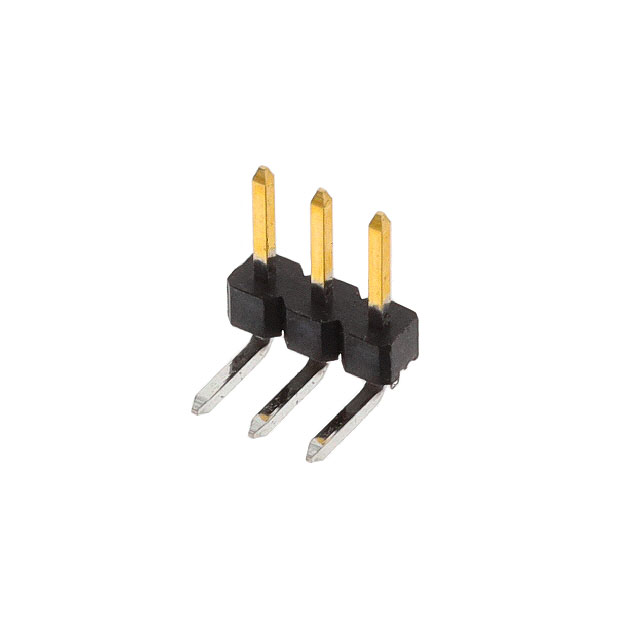

TE Connectivity Raychem Cable Protection 2842111-3	Push-Pull	Tin	All	1.5 mm	0.059 "	2 çm	78.7 çin	Unshrouded	0.11 in	2.79 mm	125 °C	-40 °C	Gold	Black	Through Hole Right Angle	2 A	UL94 V-0	15 µin	0.38 µm	Breakaway Header	Solder	Copper Alloy		Square	Male Pin	4 mm	0.157 in	Thermoplastic	125 VAC	0.079 in	2 mm	1
