SMP-2A Series
Manufacturer: Standex-Meder Electronics
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SSR RELAY SPST-NO 100MA 0-350V
| Part | Package Width | Package Name | Package Length | Circuit | Load Current | Approval Agency | Voltage - Load (Max) | Voltage - Load (Min) | Voltage - Input | Termination Style | Mounting Type | On-State Resistance (Max) | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

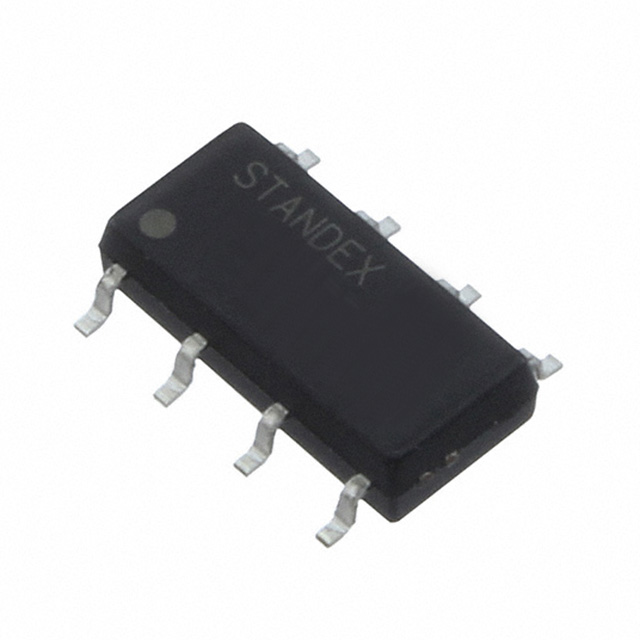

 Standex-Meder Electronics | 4.4 mm | 8-SOP | 0.173 in | SPST-NO (1 Form A) x 2 | 0.1 A | cURus | 350 V | 0 V | 1.17 VDC | Gull Wing | Surface Mount | 24 Ohms | AC DC |

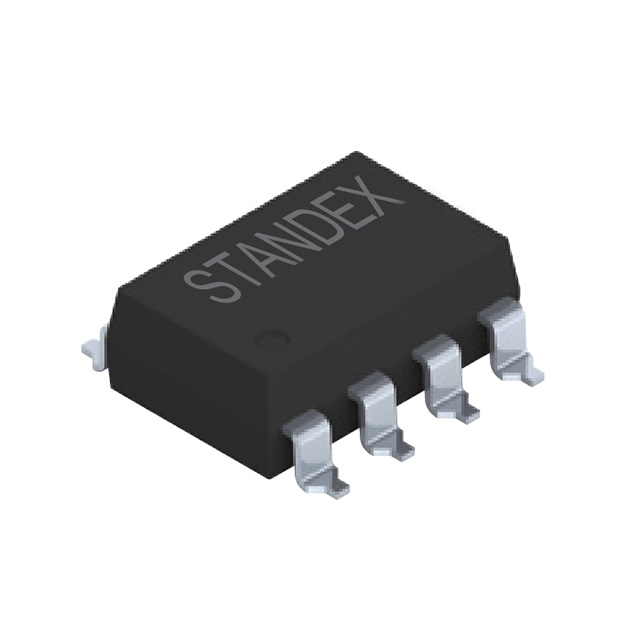

 Standex-Meder Electronics | 8-SMD | 0.3 in | SPST-NO (1 Form A) x 2 | 0.1 A | cURus | 400 V | 0 V | 1.17 VDC | Gull Wing | Surface Mount | 24 Ohms | AC DC | |
Standex-Meder Electronics | 4.4 mm | 8-SOP | 0.173 in | SPST-NO (1 Form A) x 2 | 85 mA | cURus | 400 V | 0 V | 1.17 VDC | Gull Wing | Surface Mount | 24 Ohms | AC DC |

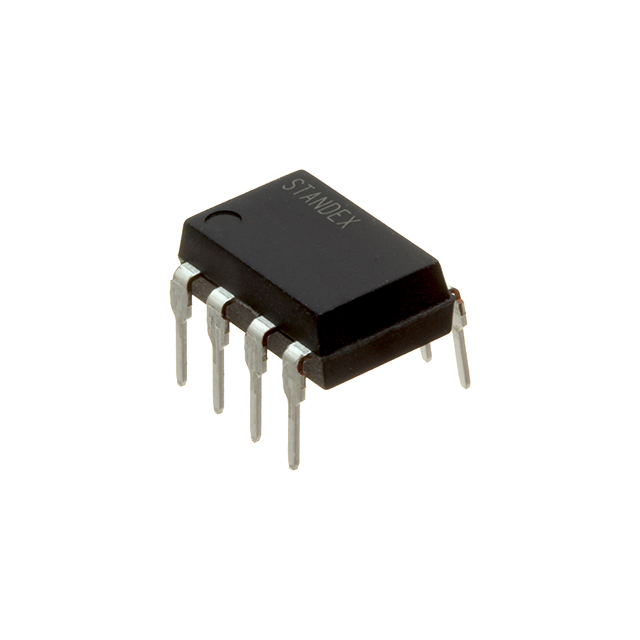

 Standex-Meder Electronics | 7.62 mm | 8-DIP | 0.3 in | SPST-NO (1 Form A) x 2 | 0.1 A | cURus | 400 V | 0 V | 1.17 VDC | PC Pin | Through Hole | 24 Ohms | AC DC |
