SIT9107 Series
Manufacturer: SiTime
Beta
⌘K
MEMS OSC XO 250.0000MHZ LVDS SMD
| Part | Voltage - Supply | Size / Dimension Width | Size / Dimension Length | Type | Mounting Type | Frequency Stability | Output | Function | Operating Temperature (Min) | Operating Temperature (Max) | Package Length | Package Name | Package Width | Frequency | Height - Seated (Max) | Current - Supply (Max) | Base Resonator | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

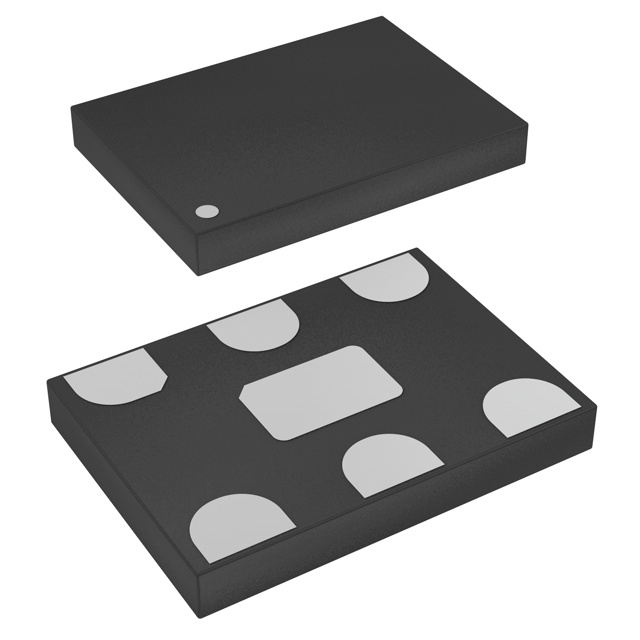

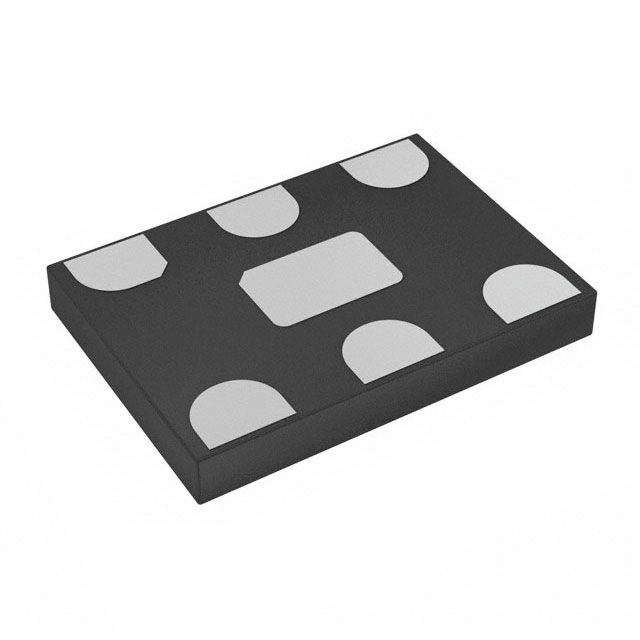

2.5 V | 0.197 in | 0.276 in | XO (Standard) | Surface Mount | 15 ppm | LVDS | Disable Enable | -40 °C | 85 °C | 7 mm | 6-SMD | 5 mm | 250 MHz | 0.039 in | 76 mA | MEMS | 6-SMD No Lead Exposed Pad | |
2.5 V | 0.197 in | 0.276 in | XO (Standard) | Surface Mount | 15 ppm | LVDS | Disable Enable | -40 °C | 85 °C | 7 mm | 6-SMD | 5 mm | 300 MHz | 0.039 in | 76 mA | MEMS | 6-SMD No Lead Exposed Pad | |

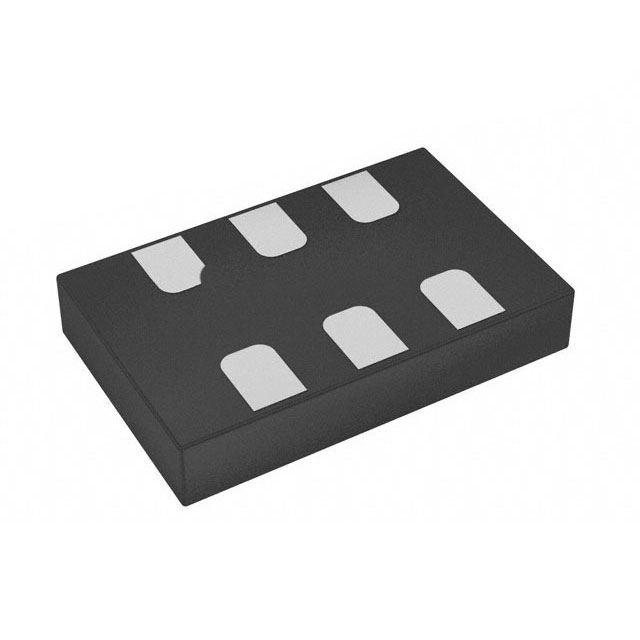

1.8 V | 0.126 in | 0.197 in | XO (Standard) | Surface Mount | 20 ppm | CML | Disable Enable | -40 °C | 85 °C | 5 mm | 6-SMD | 3.2 mm | 245.76 MHz | 0.031 in | 41 mA | MEMS | 6-SMD No Lead | |
2.5 V | 0.126 in | 0.197 in | XO (Standard) | Surface Mount | 10 ppm | LVDS | Disable Enable | 0 °C | 70 °C | 5 mm | 6-SMD | 3.2 mm | 400 MHz | 0.031 in | 76 mA | MEMS | 6-SMD No Lead | |
2.5 V | 0.197 in | 0.276 in | XO (Standard) | Surface Mount | 50 ppm | LVDS | Disable Enable | -40 °C | 85 °C | 7 mm | 6-SMD | 5 mm | 300 MHz | 0.039 in | 76 mA | MEMS | 6-SMD No Lead Exposed Pad | |
3.3 V | 0.197 in | 0.276 in | XO (Standard) | Surface Mount | 50 ppm | LVDS | Disable Enable | -40 °C | 85 °C | 7 mm | 6-SMD | 5 mm | 300 MHz | 0.039 in | 79 mA | MEMS | 6-SMD No Lead Exposed Pad | |
3.3 V | 0.197 in | 0.276 in | XO (Standard) | Surface Mount | 50 ppm | LVDS | Disable Enable | -40 °C | 85 °C | 7 mm | 6-SMD | 5 mm | 300 MHz | 0.039 in | 79 mA | MEMS | 6-SMD No Lead |
