TPS62690 Series

Catalog

500-MA, 4-MHZ, 2.85-VOUT HIGH-EFFICIENCY STEP-DOWN CONVERTER IN CHIP SCALE PACKAGING

Part	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Output Type	Voltage - Input (Max) [Max] [custom]	Output Configuration	Voltage - Input (Min) [Min]	Package / Case	Function	Mounting Type	Frequency - Switching	Current - Output	Topology	Voltage - Output (Min/Fixed)	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type	Outputs and Type	Board Type	Supplied Contents	Main Purpose	Regulator Topology	Utilized IC / Part	Voltage - Output

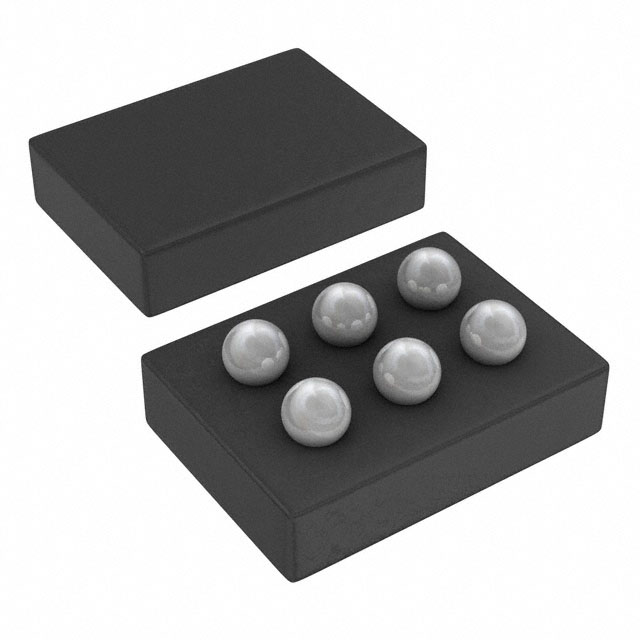

Texas Instruments TPS62690YFFT	1	85 °C	-40 °C	6-DSBGA	1.81 mOhm	4.8 V	Positive	2.3 V	6-UFBGA DSBGA	Step-Down	Surface Mount	4 MHz	500 mA	Buck	2.85 V
Texas Instruments TPS62690EVM-076												4 MHz	500 mA			2.3 V	4.8 V	Non-Isolated	1	Fully Populated	Board(s)	DC/DC Step Down	Buck	TPS62690	2.85 V
Texas Instruments TPS62690YFFR	1	85 °C	-40 °C	6-DSBGA	1.81 mOhm	4.8 V	Positive	2.3 V	6-UFBGA DSBGA	Step-Down	Surface Mount	4 MHz	500 mA	Buck	2.85 V
