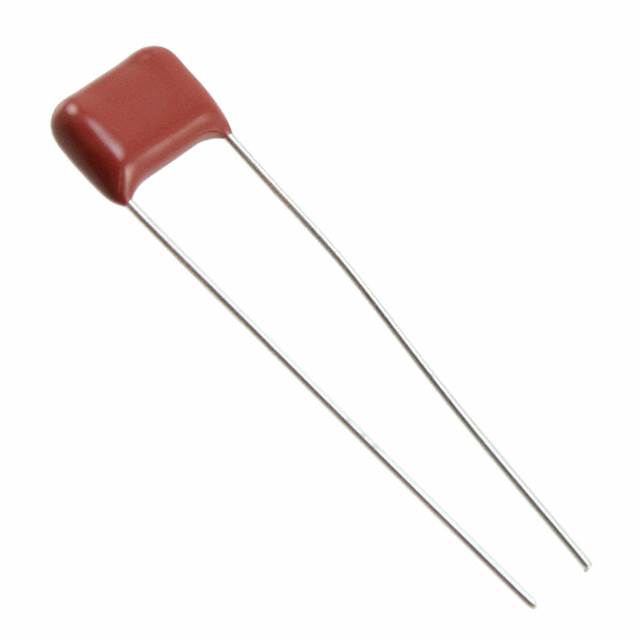

ECQ-E2393 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 0.039UF 5% 250VDC RAD

Part	Dielectric Material	Capacitance	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Termination	Package / Case	Applications	Voltage Rating - DC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]
Panasonic Electronic Components ECQ-E2393RJF	Polyester Metallized	0.039 µF	0.295 in	7.5 mm	-40 C	105 ░C	5 %	PC Pins	Radial	General Purpose	250 V	0.295 in	7.5 mm	Through Hole	0.177 "	4.5 mm	10.3 mm	0.406 in
Panasonic Electronic Components ECQ-E2393JFW	Polyester Metallized	0.039 µF	0.295 in	7.5 mm	-40 C	105 ░C	5 %	PC Pins	Radial	General Purpose	250 V		0.492 in	Through Hole	0.177 "	4.5 mm	10.3 mm	0.406 in	12.5 mm
Panasonic Electronic Components ECQ-E2393KS	Polyester Metallized	0.039 µF	0.394 in	10 mm	-40 C	85 °C	10 %	PC Pins	Radial	General Purpose	250 V		9 mm	Through Hole	0.197 "	5 mm	12.5 mm	0.492 "		0.354 in
Panasonic Electronic Components ECQ-E2393JF9	Polyester Metallized	0.039 µF	0.197 "	5 mm	-40 C	105 ░C	5 %	PC Pins	Radial	General Purpose	250 V		0.492 in	Through Hole	0.177 "	4.5 mm	10.3 mm	0.406 in	12.5 mm
Panasonic Electronic Components ECQ-E2393KBB	Polyester Metallized	0.039 µF	0.197 "	5 mm	-40 C	105 ░C	10 %	PC Pins	Radial	General Purpose	250 V	0.488 in		Through Hole	0.177 "	4.5 mm	7.9 mm	0.311 in			12.4 mm
Panasonic Electronic Components ECQ-E2393KF	Polyester Metallized	0.039 µF	0.295 in	7.5 mm	-40 C	105 ░C	10 %	PC Pins	Radial	General Purpose	250 V		8.5 mm	Through Hole	0.177 "	4.5 mm	10.3 mm	0.406 in		0.335 "
Panasonic Electronic Components ECQ-E2393KF3	Polyester Metallized	0.039 µF	0.197 "	5 mm	-40 C	105 ░C	10 %	PC Pins	Radial	General Purpose	250 V		0.492 in	Through Hole	0.177 "	4.5 mm	10.3 mm	0.406 in	12.5 mm
Panasonic Electronic Components ECQ-E2393JB3	Polyester Metallized	0.039 µF	0.197 "	5 mm	-40 C	105 ░C	5 %	PC Pins	Radial	General Purpose	250 V	0.488 in		Through Hole	0.177 "	4.5 mm	7.9 mm	0.311 in			12.4 mm

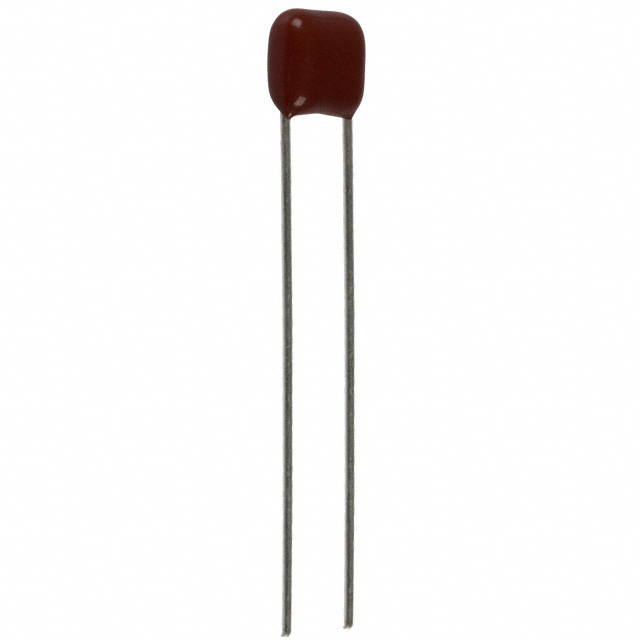

Panasonic Electronic Components ECQ-E2393KB3	Polyester Metallized	0.039 µF	0.197 "	5 mm	-40 C	105 ░C	10 %	PC Pins	Radial	General Purpose	250 V	0.488 in		Through Hole	0.177 "	4.5 mm	7.9 mm	0.311 in			12.4 mm
Panasonic Electronic Components ECQ-E2393JF	Polyester Metallized	0.039 µF	0.295 in	7.5 mm	-40 C	105 ░C	5 %	PC Pins	Radial	General Purpose	250 V		8.5 mm	Through Hole	0.177 "	4.5 mm	10.3 mm	0.406 in		0.335 "
