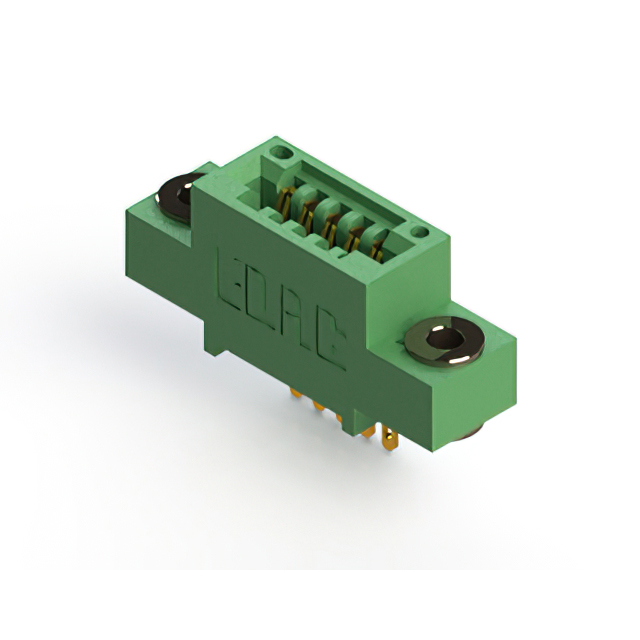

345-005 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE SINGLE FML 5POS 0.100
...
| Part | Mounting Type | Pitch [x] | Pitch [x] | Card Type | Flange Feature | Contact Type | Read Out | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Material - Insulation | Features | Number of Rows | Gender | Number of Positions/Bay/Row [custom] | Termination Rows | Contact Finish | Termination | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | Cantilever | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Green | -40 °C | 105 ░C | Polyester Thermoplastic | Card Guides | 1 | Female | 5 | 1 | Gold | Wire Wrap | ||||
 EDAC Inc. | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | Cantilever | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Green | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | Female | 5 | 1 | Gold | Wire Wrap | 3.25 mm | 0.128 in | ||||
 EDAC Inc. | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Cantilever | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Green | -40 °C | 105 ░C | Polyester Thermoplastic | Card Guides | 1 | Female | 5 | 1 | Gold | Solder Eyelet(s) | ||||
 EDAC Inc. | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | M3 Threaded Insert Top Mount Opening | Cantilever | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Green | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | Female | 5 | 1 | Gold | Solder | |||||
 EDAC Inc. | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | M3 Threaded Insert Top Mount Opening | Cantilever | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Green | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | Female | 5 | 1 | Gold | Wire Wrap | |||||
 EDAC Inc. | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | Floating Bobbin Flush Mount | Cantilever | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Green | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | Female | 5 | 1 | Gold | Wire Wrap | 0.116 in | 2.95 mm | |||
 EDAC Inc. | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Cantilever | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Green | -40 °C | 105 ░C | Polyester Thermoplastic | Card Guides | 1 | Female | 5 | 1 | Gold | Solder | ||||
 EDAC Inc. | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | Cantilever | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Green | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | Female | 5 | 1 | Gold | Wire Wrap | 0.128 " | 3.25 mm | |||
 EDAC Inc. | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | Floating Bobbin Top Mount Opening | Cantilever | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Green | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | Female | 5 | 1 | Gold | Solder Eyelet(s) | 0.116 in | 2.95 mm | |||
 EDAC Inc. | Through Hole | 2.54 mm | 0.1 in | Non Specified - Single Edge | Cantilever | Single | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Copper Alloy | Green | -40 °C | 105 ░C | Polyester Thermoplastic | 1 | Female | 5 | 1 | Gold | Solder | 3.25 mm | 0.128 in |
