2305018 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

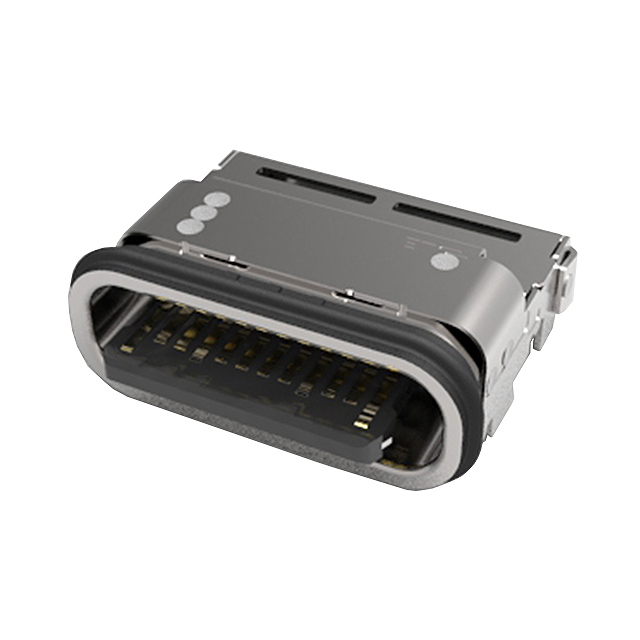

CONN RCP USB3.1 TYPEC 24P SMD RA
| Part | Connector Type | Contact Finish | Voltage - Rated | Ingress Protection | Mounting Feature | Material Flammability Rating | Current Rating (Amps) | Insulation Color | Specifications | Mounting Type | Termination | Shielding | Number of Contacts | Features | Shell/Shielding Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Ports | Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | USB-C (USB TYPE-C) | Gold | 30 V | IPX8 - Waterproof | Horizontal | UL94 V-0 | 0.25 A 1 A 1.25 A | Black | USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1)) | Surface Mount Right Angle Through Hole | Solder | Shielded | 24 | Board Guide | Stainless Steel | 85 °C | -40 °C | 1 | Receptacle |
 TE Connectivity Raychem Cable Protection | USB-C (USB TYPE-C) | Gold | 30 V | Horizontal | UL94 V-0 | 0.25 A 1 A 1.25 A | Black | USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1)) | Surface Mount Right Angle Through Hole | Solder | Shielded | 24 | Board Guide | Stainless Steel | 85 °C | -40 °C | 1 | Receptacle |
