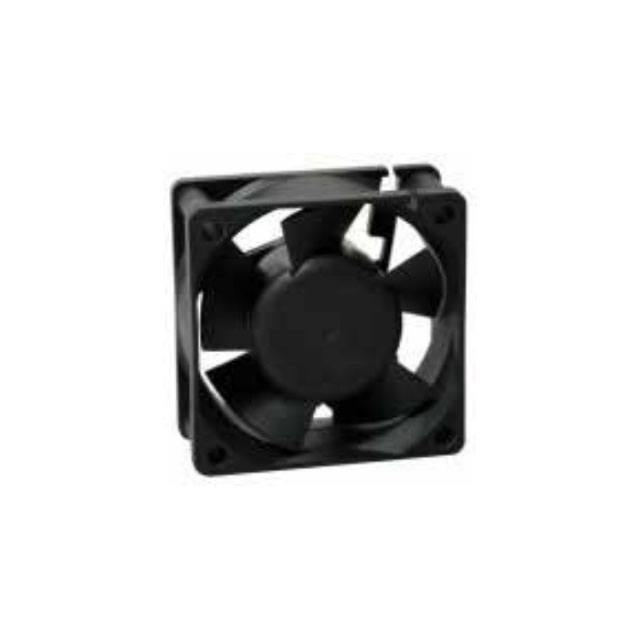

MR6025 Series

Catalog

FAN AXIAL 60X25.5MM 24VDC WIRE

Part	Air Flow	Air Flow	Material - Frame	Current Rating (Amps)	Material - Blade	Fan Type	RPM	Noise	Termination	Static Pressure	Static Pressure	Size / Dimension [z]	Size / Dimension [x]	Voltage - Rated	Bearing Type	Features	Width [y]	Air Flow
Mechatronics Fan Group MR6025M24B-RSR	0.75 mł/min	26.8 CFM	Plastic	110 mA	Plastic	Tubeaxial	5500 RPM	40 dB(A)	2 Wire Leads	0.35 in H2O	87.2 Pa	60 mm	60 mm	24 VDC	Ball	Auto Restart	25.5 mm
Mechatronics Fan Group MR6025E24B-RSR	1.03 m³/min	36.6 CFM	Plastic		Plastic	Tubeaxial	7500 RPM	50 dB(A)	2 Wire Leads	0.64 in H2O	159.4 Pa	60 mm	60 mm	24 VDC	Ball	Auto Restart	25.5 mm
Mechatronics Fan Group MR6025X12B-RSR	1.09 m³/min	39 CFM	Plastic	360 mA	Plastic	Tubeaxial	8000 RPM	51 dB(A)	2 Wire Leads	0.73 in H2O	181.8 Pa	60 mm	60 mm	12 VDC	Ball	Auto Restart	25.5 mm
Mechatronics Fan Group MR6025X24B-RSR	1.09 m³/min	39 CFM	Plastic	0.18 A	Plastic	Tubeaxial	8000 RPM	51 dB(A)	2 Wire Leads	0.73 in H2O	181.8 Pa	60 mm	60 mm	24 VDC	Ball	Auto Restart	25.5 mm	39 CFM
Mechatronics Fan Group MR6025M12B-RSR	0.75 mł/min	26.8 CFM	Plastic	0.21 A	Plastic	Tubeaxial	5500 RPM	40 dB(A)	2 Wire Leads	0.35 in H2O	87.2 Pa	60 mm	60 mm	12 VDC	Ball	Auto Restart	25.5 mm
Mechatronics Fan Group MR6025X12B1+6-RSR	1.1 m³/min	39.2 CFM	Plastic	360 mA	Plastic	Tubeaxial	8000 RPM	51 dB(A)	4 Wire Leads	0.73 in H2O	181.8 Pa	60 mm	60 mm	12 VDC	Ball	Auto Restart PWM Control Speed Sensor (Tach)	25.5 mm
Mechatronics Fan Group MR6025L12B-RSR	0.613 m³/min	21.9 CFM	Plastic	150 mA	Plastic	Tubeaxial	4500 RPM	35 dB	2 Wire Leads	0.23 in H2O	57.3 Pa	60 mm	60 mm	12 VDC	Ball	Auto Restart	25.5 mm
Mechatronics Fan Group MR6025H24B-RSR	0.888 m³/min	31.7 CFM	Plastic		Plastic	Tubeaxial	6500 RPM	46 dB(A)	2 Wire Leads	0.48 in H2O	119.6 Pa	60 mm	60 mm	24 VDC	Ball	Auto Restart	25.5 mm
Mechatronics Fan Group MR6025L24B-RSR	0.613 m³/min	21.9 CFM	Plastic	750 mA	Plastic	Tubeaxial	4500 RPM	35 dB	2 Wire Leads	0.23 in H2O	57.3 Pa	60 mm	60 mm	24 VDC	Ball	Auto Restart	25.5 mm
Mechatronics Fan Group MR6025E12B-RSR	1.03 m³/min	36.6 CFM	Plastic	0.31 A	Plastic	Tubeaxial	7500 RPM	50 dB(A)	2 Wire Leads	0.64 in H2O	159.4 Pa	60 mm	60 mm	12 VDC	Ball	Auto Restart	25.5 mm
