TPS54332 Series

3.5V to 28V Input, 3.5A, 1MHz Step-Down Converter with Eco-mode

Catalog

3.5V to 28V Input, 3.5A, 1MHz Step-Down Converter with Eco-mode

Part	Current - Output	Frequency - Switching	Voltage - Output	Regulator Topology	Utilized IC / Part	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type	Outputs and Type	Board Type	Supplied Contents	Main Purpose	Number of Outputs	Voltage - Input (Min) [Min]	Synchronous Rectifier	Voltage - Input (Max) [Max]	Function	Voltage - Output (Min/Fixed)	Package / Case [y]	Package / Case [x]	Package / Case	Supplier Device Package	Mounting Type	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Topology	Output Configuration	Voltage - Output (Max) [Max]

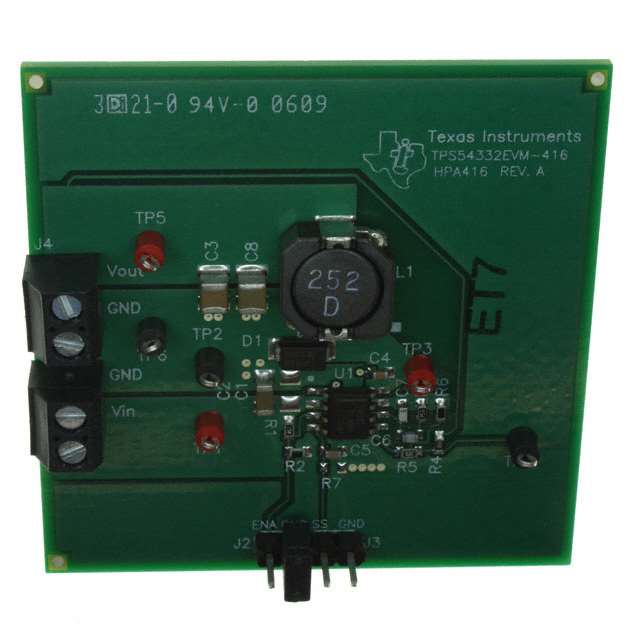

Texas Instruments TPS54332EVM-416	3.5 A	1 MHz	2.5 V	Buck	TPS54332	5 V	15 V	Non-Isolated	1	Fully Populated	Board(s)	DC/DC Step Down
Texas Instruments TPS54332DDA	3.5 A	1 MHz											1	3.5 V		28 V	Step-Down	0.8 V	3.9 mm	0.154 in	8-PowerSOIC	8-SO PowerPad	Surface Mount	Adjustable	150 °C	-40 °C	Buck	Positive	26.04 V

Catalog

3.5V to 28V Input, 3.5A, 1MHz Step-Down Converter with Eco-mode

Key Features

• 3.5-V to 28-V input voltage rangeAdjustable output voltage down to 0.8 VIntegrated 80-mΩ high-side MOSFET supports up to 3.5-A continuous output currentHigh-efficiency at light loads with a pulse-skipping Eco-modeFixed 1-MHz switching frequencyTypical 1-µA shutdown quiescent currentAdjustable slow-start limits inrush currentsProgrammable UVLO thresholdOvervoltage transient protectionCycle-by-cycle current limit, frequency foldback and thermal shutdown protectionAvailable in thermally enhanced, 8-pin SOIC PowerPAD™ integrated circuit packageUseTPS62933for a 30 VIN converter with higher frequency, lower IQ, and improved EMICreate a custom design using the TPS54332 with theWEBENCH Power Designer3.5-V to 28-V input voltage rangeAdjustable output voltage down to 0.8 VIntegrated 80-mΩ high-side MOSFET supports up to 3.5-A continuous output currentHigh-efficiency at light loads with a pulse-skipping Eco-modeFixed 1-MHz switching frequencyTypical 1-µA shutdown quiescent currentAdjustable slow-start limits inrush currentsProgrammable UVLO thresholdOvervoltage transient protectionCycle-by-cycle current limit, frequency foldback and thermal shutdown protectionAvailable in thermally enhanced, 8-pin SOIC PowerPAD™ integrated circuit packageUseTPS62933for a 30 VIN converter with higher frequency, lower IQ, and improved EMICreate a custom design using the TPS54332 with theWEBENCH Power Designer

Description

The TPS54332 is a 28-V, 3.5-A non-synchronous buck converter that integrates a low-R DS(on) high-side MOSFET. To increase efficiency at light loads, a pulse-skipping Eco-mode feature is automatically activated. Furthermore, the 1-µA shutdown supply current allows the device to be used in battery-powered applications. Current mode control with internal slope compensation simplifies the external compensation calculations and reduces component count while allowing the use of ceramic output capacitors. A resistor divider programs the hysteresis of the input undervoltage lockout. An overvoltage transient protection circuit limits voltage overshoots during start-up and transient conditions. A cycle-by-cycle current limit scheme, frequency foldback and thermal shutdown protect the device and the load in the event of an overload condition. The TPS54332 is available in an 8-pin SOIC PowerPAD integrated circuit package. The TPS54332 is a 28-V, 3.5-A non-synchronous buck converter that integrates a low-R DS(on) high-side MOSFET. To increase efficiency at light loads, a pulse-skipping Eco-mode feature is automatically activated. Furthermore, the 1-µA shutdown supply current allows the device to be used in battery-powered applications. Current mode control with internal slope compensation simplifies the external compensation calculations and reduces component count while allowing the use of ceramic output capacitors. A resistor divider programs the hysteresis of the input undervoltage lockout. An overvoltage transient protection circuit limits voltage overshoots during start-up and transient conditions. A cycle-by-cycle current limit scheme, frequency foldback and thermal shutdown protect the device and the load in the event of an overload condition. The TPS54332 is available in an 8-pin SOIC PowerPAD integrated circuit package.
