CRE22F4F Series
Manufacturer: ZF Electronics
Beta
⌘K

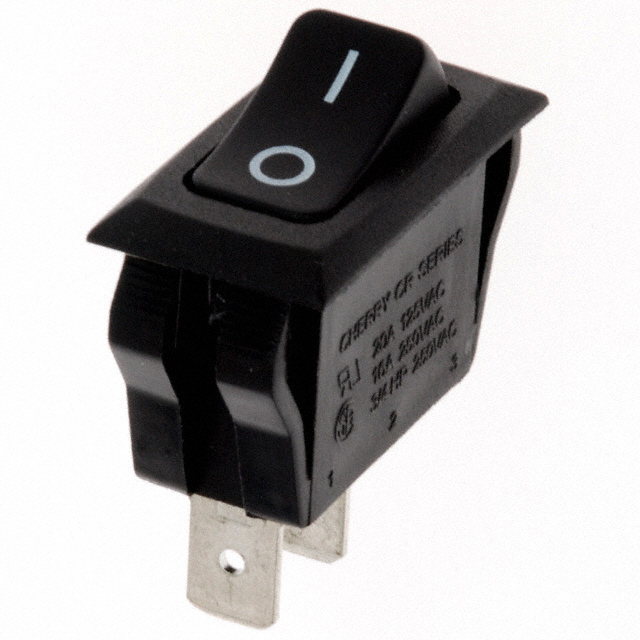

SWITCH ROCKER SPST 20A 125V
| Part | Electrical Life | Mechanical Life | Actuator Marking | Features | Voltage Rating - AC | Circuit | Termination Style | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Color - Actuator/Cap | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Mounting Type | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ZF Electronics | 6000 Cycles | 100000 Cycles | O - | Two-Tone Rocker | 125 V | SPST | Quick Connect - 0.250" (6.3mm) | 28.5 mm | 12.1 mm | Black Red | On-Off | 85 °C | -20 ░C | 20 A | Panel Mount Snap-In | Concave (Curved) |
