PPTC022 Series

Catalog

CONN HDR 4POS 0.1 TIN PCB

Part	Contact Shape	Contact Material	Insulation Material	Contact Type	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Fastening Type	Material Flammability Rating	Insulation Color	Connector Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Number of Rows [custom]	Termination	Insulation Height	Insulation Height	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Contact Length - Post	Contact Length - Post

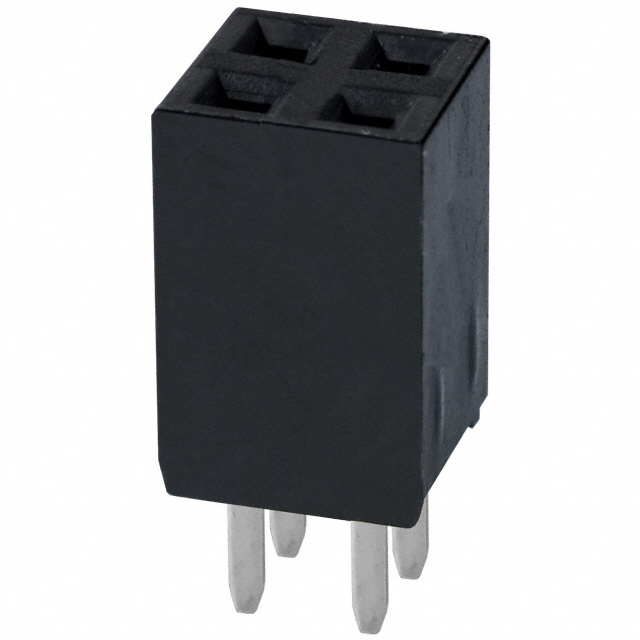

Sullins Connector Solutions PPTC022LFBN-RC	Square	Phosphor Bronze	Polyester	Female Socket	Through Hole	0.1 in	2.54 mm	3 A	0.126 "	3.2 mm	0.1 "	2.54 mm	All	Push-Pull	UL94 V-0	Black	Header	4	-40 C	105 ░C	250 V	2	Solder	0.335 "	8.51 mm	Tin

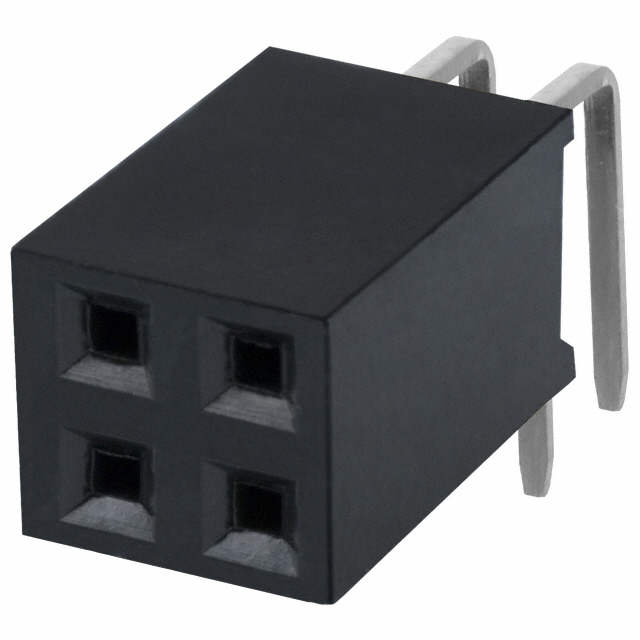

Sullins Connector Solutions PPTC022LJBN-RC	Square	Phosphor Bronze	Polyester	Female Socket	Right Angle Through Hole	0.1 in	2.54 mm	3 A			0.1 "	2.54 mm	All	Push-Pull	UL94 V-0	Black	Header	4	-40 C	105 ░C	250 V	2	Solder			Tin	0.2 in	5.08 mm	0.124 in	3.15 mm
Sullins Connector Solutions PPTC022LFBN	Square	Phosphor Bronze	Polyester	Female Socket	Through Hole	0.1 in	2.54 mm	3 A	0.126 "	3.2 mm	0.1 "	2.54 mm	All	Push-Pull	UL94 V-0	Black	Header	4	-40 C	105 ░C	250 V	2	Solder	0.335 "	8.51 mm	Tin
