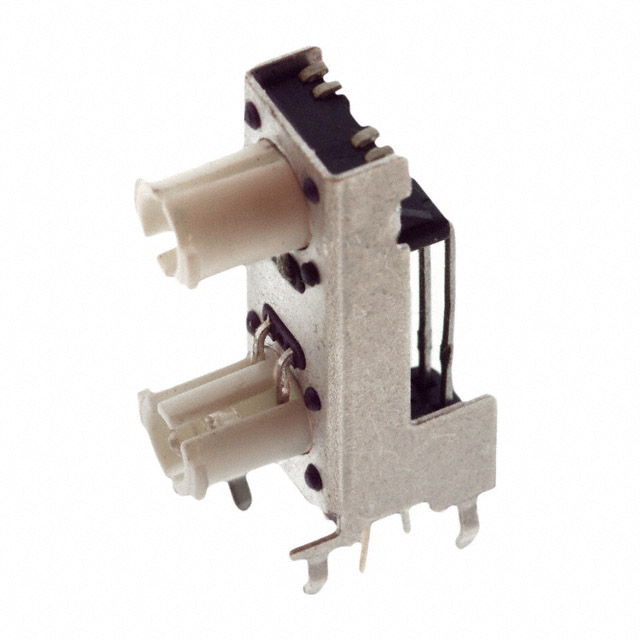

TL3253 Series

Manufacturer: E-Switch

Catalog

SWITCH TACT SPSTX2 0.05A 12V

Part	Switch Travel	Mechanical Life	Actuator Type	Outline [y]	Outline [x]	Switch Function	Illumination Type, Color	Illumination Voltage (Nominal)	Actuator Length, Right Angle	Mounting Type	Illumination	Actuator Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Operating Force	Circuit	Contact Rating @ Voltage	Termination Style	Actuator Length, Right Angle [x]	Illumination Voltage (Nominal) [Max]	Illumination Voltage (Nominal) [Min]
E-Switch TL3253BRNBRNF160Q	0.25 mm	500000 Cycles	Dual	10.5 mm	8.4 mm	Off-Mom	LED Red	1.95 VDC	8.55 mm	Right Angle Through Hole	Illuminated	Side Actuated	-20 ░C	70 °C	160 gf	SPST x 2	0.05 A 12 VDC	PC Pin
E-Switch TL3253ARAAYAF160Q	0.25 mm	500000 Cycles	Dual	10.5 mm	8.4 mm	Off-Mom	LED Red Yellow			Right Angle Through Hole	Illuminated	Side Actuated	-20 ░C	70 °C	160 gf	SPST x 2	0.05 A 12 VDC	PC Pin	6.6 mm	2 VDC	1.95 VDC
E-Switch TL3253BGABGAF160Q	0.25 mm	500000 Cycles	Dual	10.5 mm	8.4 mm	Off-Mom	Green/Green LED	2.1 VDC	8.55 mm	Right Angle Through Hole	Illuminated	Side Actuated	-20 ░C	70 °C	160 gf	SPST x 2	0.05 A 12 VDC	PC Pin
E-Switch TL3253BBABGAF160Q			Dual	10.5 mm	8.4 mm	Off-Mom	Blue/Green LED	2.1 VDC 3.3 VDC	8.55 mm	Right Angle Through Hole	Illuminated	Side Actuated	-20 ░C	70 °C	160 gf	SPST x 2	0.05 A 12 VDC	PC Pin
E-Switch TL3253BBNBBNF160Q	0.25 mm	500000 Cycles	Dual	10.5 mm	8.4 mm	Off-Mom	Blue LED	3.3 VDC	8.55 mm	Right Angle Through Hole	Illuminated	Side Actuated	-20 ░C	70 °C	160 gf	SPST x 2	0.05 A 12 VDC	PC Pin
E-Switch TL3253BWBBBBF160Q	0.25 mm	500000 Cycles	Dual	10.5 mm	8.4 mm	Off-Mom	Blue/White LED	3.3 VDC	8.55 mm	Right Angle Through Hole	Illuminated	Side Actuated	-20 ░C	70 °C	160 gf	SPST x 2	0.05 A 12 VDC	PC Pin
