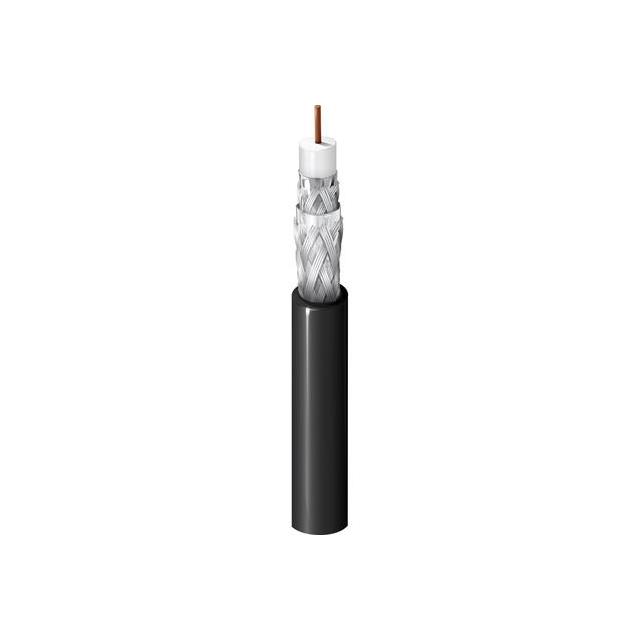

5339Q5 Series
Manufacturer: Belden Inc.
Beta
⌘K
RG-6 QUAD SHIELD COAX
| Part | Dielectric Material | Conductor Material | Shield Material | Operating Temperature [Max] | Operating Temperature [Min] | Shield Coverage | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Conductor Strand | Jacket (Insulation) Material | Impedance | Wire Gauge | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Cable Group | Shield Type | Cable Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Foam Polyethylene (FPE) | Copper Bare | Aluminum | 80 °C | -40 C | 40 % 60 % 100 % | 83 | 0.18 in | 4.57 mm | Solid | Poly-Vinyl Chloride (PVC) | 75 Ohms | 18 AWG | 304.8 m | 1000 ft | 7.57 mm | 0.298 " | White | RG-6 | Braid Foil | Coaxial | Quad Shield |
Belden Inc. | Foam Polyethylene (FPE) | Copper Bare | Aluminum | 80 °C | -40 C | 40 % 60 % 100 % | 83 | 0.18 in | 4.57 mm | Solid | Poly-Vinyl Chloride (PVC) | 75 Ohms | 18 AWG | 152.4 m | 500 ft | 7.57 mm | 0.298 " | White | RG-6 | Braid Foil | Coaxial | Quad Shield |
