78355 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

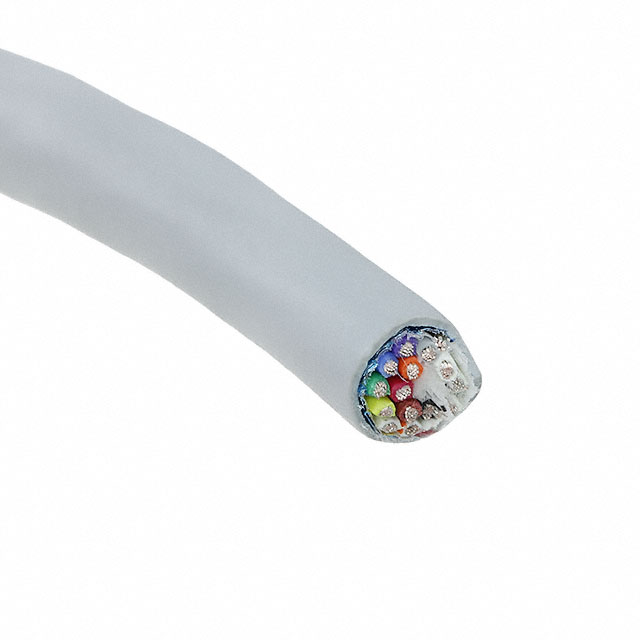

CABLE 15COND 20AWG SHLD 100'
| Part | Shield Coverage | Shield Material | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Conductor Insulation | Cable Type | Ratings | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Jacket Color | Shield Type | Wire Gauge | Jacket (Insulation) Material | Conductor Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Copper Tinned Suprashield® | 19 | 32 AWG | 300 VDC | 0.381 mm | 0.015 in | 80 °C | -40 C | Biological Compatibility Drain Wire Rip Cord | Polyphenylene Ether Modified (mPPE) | Multi-Conductor | ISO 10993 UL Style 21460 | 7.95 mm | 0.313 in | 15 | Slate | Braid Foil | 20 AWG | Polyphenylene Ether Modified (mPPE) | Copper Tinned | 100 ft | 30.5 m |
