745-009 Series
Manufacturer: EDAC Inc.
Beta
⌘K

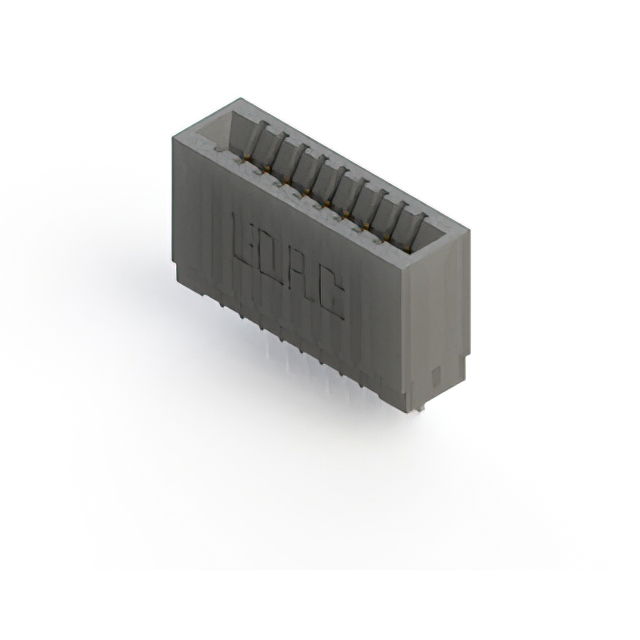

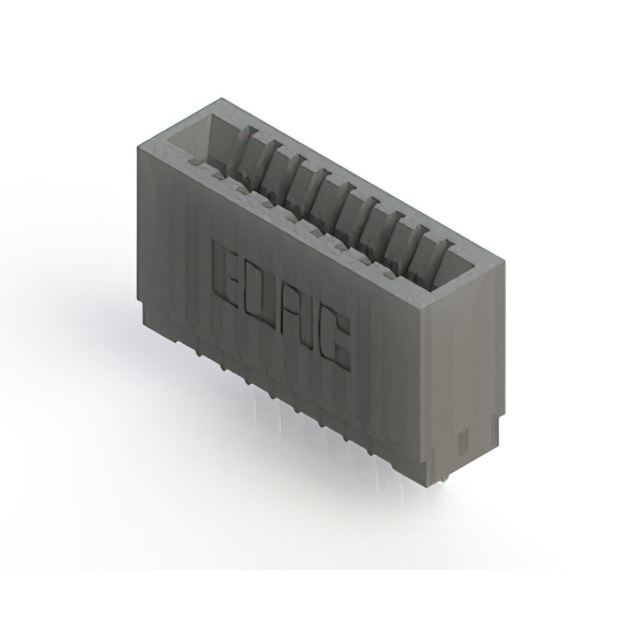

CONN EDGE SINGLE FML 9POS 0.100
| Part | Termination Rows | Material - Insulation | Contact Material | Number of Rows | Number of Positions | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Termination | Mounting Type | Color | Contact Finish Thickness | Contact Finish Thickness | Gender | Contact Finish | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Number of Positions/Bay/Row | Card Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | 1 | 9 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Press-Fit | Through Hole | Black | 30 Áin | 0.76 Ám | Female | Gold | Single | -40 C | 105 ░C | 0.1 " | 2.54 mm | 9 | Non Specified - Single Edge |
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | 1 | 9 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Press-Fit | Through Hole | Black | 30 Áin | 0.76 Ám | Female | Gold | Single | -40 C | 105 ░C | 0.1 " | 2.54 mm | 9 | Non Specified - Single Edge |
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | 1 | 9 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Press-Fit Wire Wrap | Through Hole | Black | 30 Áin | 0.76 Ám | Female | Gold | Single | -40 C | 105 ░C | 0.1 " | 2.54 mm | 9 | Non Specified - Single Edge |
 EDAC Inc. | 1 | Polyester Thermoplastic | Copper Alloy | 1 | 9 | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Press-Fit | Through Hole | Black | 30 Áin | 0.76 Ám | Female | Gold | Single | -40 C | 105 ░C | 0.1 " | 2.54 mm | 9 | Non Specified - Single Edge |
