69145 Series

Catalog

JUMPER LOW PRO DR MULTI

Part	Number of Positions or Pins (Grid) [custom]	Housing Material	Current Rating (Amps)	Type	Gender	Height [z]	Height [z]	Pitch [x]	Pitch [x]	Color	Contact Finish	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)
Amphenol ICC (FCI) 69145-104LF	4	Polyester	3 A	Open Top	Female Sockets	5.08 mm	0.2 in	2.54 mm	0.1 in	Black	Gold or Gold GXT™	UL94 V-0	15 µin	0.38 µm

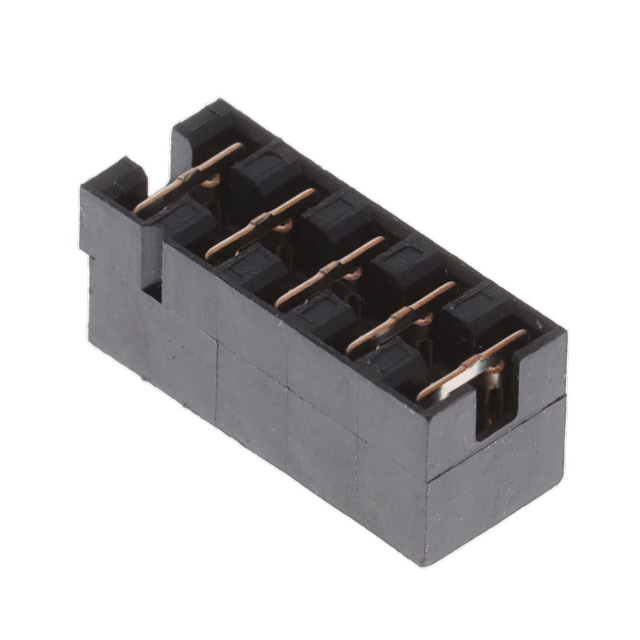

Amphenol ICC (FCI) 69145-210LF		Polyester	3 A	Open Top	Female Sockets	5.08 mm	0.2 in	2.54 mm	0.1 in	Black	Gold or Gold GXT™	UL94 V-0	30 Áin	0.76 Ám	2 x 5	10
Amphenol ICC (FCI) 69145-106LF		Polyester	3 A	Open Top	Female Sockets	5.08 mm	0.2 in	2.54 mm	0.1 in	Black	Gold or Gold GXT™	UL94 V-0	15 µin	0.38 µm			2	6	3
Amphenol ICC (FCI) 69145-318		Polyester	3 A	Open Top	Female Sockets	5.08 mm	0.2 in	2.54 mm	0.1 in	Black	Tin	UL94 V-0	100 µin	2.54 µm						18
Amphenol ICC (FCI) 69145-208		Polyester	3 A	Open Top	Female Sockets	5.08 mm	0.2 in	2.54 mm	0.1 in	Black	Gold or Gold GXT™	UL94 V-0	30 Áin	0.76 Ám						8

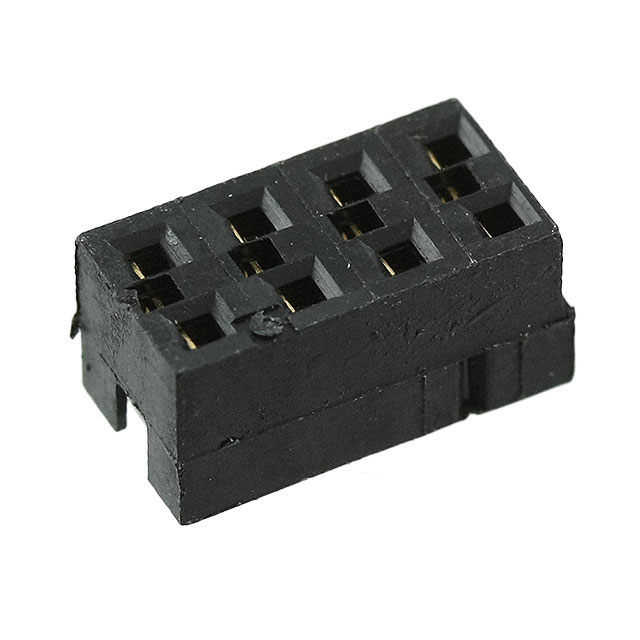

Amphenol ICC (FCI) 69145-108LF		Polyester	3 A	Open Top	Female Sockets	5.08 mm	0.2 in	2.54 mm	0.1 in	Black	Gold or Gold GXT™	UL94 V-0	15 µin	0.38 µm						8
Amphenol ICC (FCI) 69145-304	4	Polyester	3 A	Open Top	Female Sockets	5.08 mm	0.2 in	2.54 mm	0.1 in	Black	Tin	UL94 V-0	100 µin	2.54 µm
Amphenol ICC (FCI) 69145-314		Polyester		Open Top	Female Sockets	5.08 mm	0.2 in	2.54 mm	0.1 in	Black	Tin	UL94 V-0	100 µin	2.54 µm						14
Amphenol ICC (FCI) 69145-116		Polyester	0.039 A	Open Top	Female Sockets	5.08 mm	0.2 in	2.54 mm	0.1 in	Black	Gold	UL94 V-0	15 µin	0.38 µm						16
Amphenol ICC (FCI) 69145-314LF		Polyester	3 A	Open Top	Female Sockets	5.08 mm	0.2 in	2.54 mm	0.1 in	Black	Tin	UL94 V-0	100 µin	2.54 µm						14
