GBC27S Series

Catalog

CONN HEADER SMD R/A 27POS 2.54MM

Part	Termination	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Shrouding	Fastening Type	Contact Type	Contact Finish - Mating	Insulation Height	Insulation Height	Insulation Color	Contact Material	Number of Positions	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Contact Finish - Post	Mounting Type	Style	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Contact Length - Mating [x]	Contact Length - Mating	Connector Type	Number of Rows	Insulation Material	Contact Length - Mating [x]

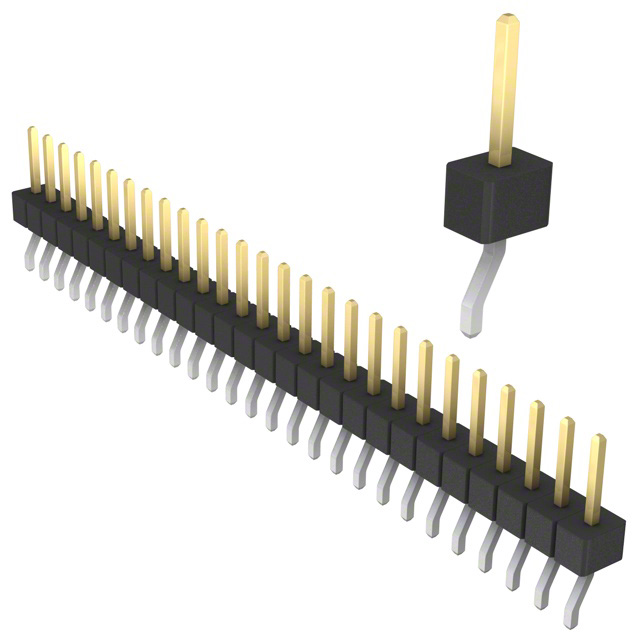

Sullins Connector Solutions GBC27SBSN-M89	Solder	3 A	2.54 µm	100 µin	UL94 V-0	Unshrouded	Push-Pull	Male Pin	Gold	3.56 mm	0.14 in	Black	Phosphor Bronze	27	10 çin	0.25 çm	Square	Tin	Surface Mount Right Angle	Board to Board Cable	0.1 in	2.54 mm	-65 ░C	150 °C	All	0.23 in	5.84 mm	Breakaway Header	1	Nylon 9T Polyamide (PA9T)
Sullins Connector Solutions GBC27SABN-M30	Solder	3 A	2.54 µm	100 µin	UL94 V-0	Unshrouded	Push-Pull	Male Pin	Gold	2.54 mm	0.1 in	Black	Phosphor Bronze	27	10 çin	0.25 çm	Square	Tin	Surface Mount	Board to Board Cable	0.1 in	2.54 mm	-65 ░C	150 °C	All	0.23 in	5.84 mm	Breakaway Header	1	Nylon 9T Polyamide (PA9T)
Sullins Connector Solutions GBC27SFBN-M30	Solder	3 A	2.54 µm	100 µin	UL94 V-0	Unshrouded	Push-Pull	Male Pin	Gold	2.54 mm	0.1 in	Black	Phosphor Bronze	27	10 çin	0.25 çm	Square	Tin	Surface Mount	Board to Board Cable	0.1 in	2.54 mm	-65 ░C	150 °C	All	0.318 "		Breakaway Header	1	Nylon 9T Polyamide (PA9T)	8.08 mm
