DKIH Series

Catalog

CMC 20A 2LN TH

Part	Mounting Type	Current Rating (Max) [Max]	Height (Max)	Height (Max) [Max] [z]	Number of Lines	Package / Case	DC Resistance (DCR) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Filter Type	Height (Max) [Max] [z]	Voltage Rating - AC	Voltage Rating - DC	DC Resistance (DCR) (Max)
SCHURTER Inc. DKIH-3242-202M-NK	Through Hole	20 A	26 mm	1.024 in	2	4 PC Pin Horizontal	2.5 mOhm	-40 C	100 °C	43 mm	1.693 in

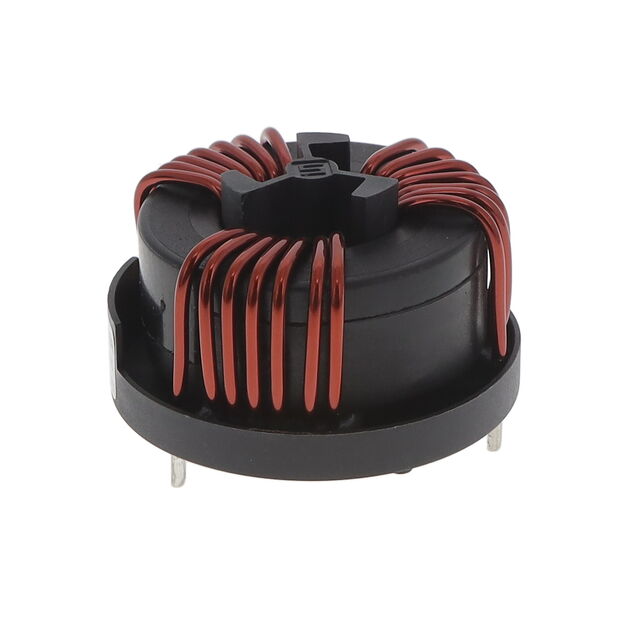

SCHURTER Inc. DKIH-3352-16D5	Through Hole	16 A		1.22 in	3	Horizontal 6 PC Pin	3 mOhm	-40 C	100 °C	53 mm	2.087 "	Power Line	31 mm	600 V
SCHURTER Inc. DKIH-3452-40D7-NK	Through Hole	40 A		1.22 in	4	8 PC Pin Horizontal		-40 C	100 °C	53 mm	2.087 "		31 mm	500 V	500 V
SCHURTER Inc. DKIH-3352-162N-NK	Through Hole	16 A		1.22 in	3	Horizontal 6 PC Pin	3 mOhm	-40 C	100 °C	53 mm	2.087 "		31 mm	600 V
SCHURTER Inc. DKIH-3352-1011-NK	Through Hole	10 A		1.22 in	3	Horizontal 6 PC Pin		-40 C	100 °C	53 mm	2.087 "		31 mm	600 V		7.5 mOhm
SCHURTER Inc. DKIH-3242-160Q-NK	Through Hole	16 A	26 mm	1.024 in	2	4 PC Pin Horizontal	5.6 mOhm	-40 C	100 °C	43 mm	1.693 in
SCHURTER Inc. DKIH-3458-250K-NK	Through Hole	25 A		1.22 in	4	8 PC Pin Horizontal	1.4 mOhm	-40 C	100 °C	58 mm	2.283 in		31 mm	760 V	760 V
SCHURTER Inc. DKIH-3352-254K-NK	Through Hole	25 A		1.22 in	3	Horizontal 6 PC Pin	1.2 mOhm	-40 C	100 °C	53 mm	2.087 "		31 mm	600 V
SCHURTER Inc. DKIH-3358-326K-NK	Through Hole	32 A		1.22 in	3	Horizontal 6 PC Pin	1.1 mOhm	-40 C	100 °C	58 mm	2.283 in		31 mm	600 V
SCHURTER Inc. DKIH-3458-105U-NK	Through Hole	10 A		1.22 in	4	8 PC Pin Horizontal	8 mOhm	-40 C	100 °C	58 mm	2.283 in		31 mm	760 V	760 V
