2029030 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

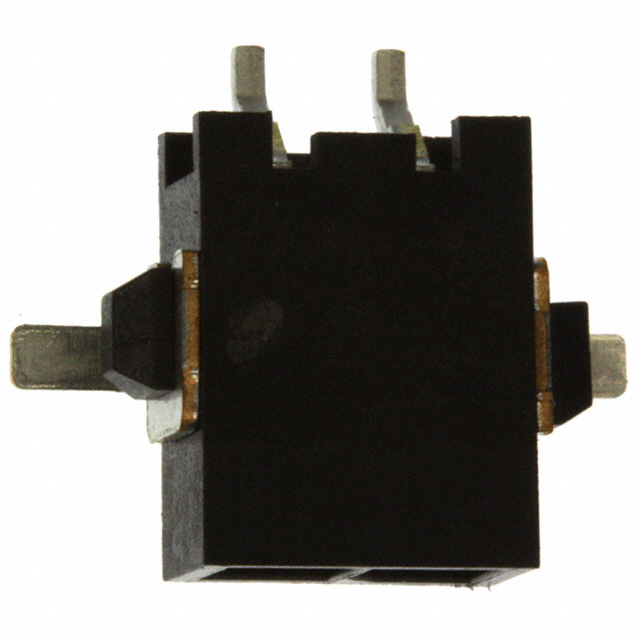

CONN HEADER SMD R/A 2POS 3MM
| Part | Shrouding | Material Flammability Rating | Features | Mounting Type | Fastening Type | Contact Type | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Number of Positions Loaded | Contact Finish - Post | Insulation Height | Insulation Height | Current Rating (Amps) | Applications | Insulation Material | Pitch - Mating | Pitch - Mating | Style | Contact Shape | Insulation Color | Contact Material | Number of Rows | Termination | Voltage Rating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Shrouded - 4 Wall | UL94 V-0 | Solder Retention | Surface Mount Right Angle | Locking Ramp | Male Pin | 2 | 2.54 çm | 100 çin | Header | All | Tin | 0.152 in | 3.85 mm | Varies by Wire Gauge | General Purpose | Nylon Polyamide (PA) | 0.118 in | 3 mm | Board to Cable/Wire | Square | Black | Brass | 1 | Solder | 250 VDC | 2.54 µm | 100 µin | -40 °C | 105 ░C |
