73203WS Series
Manufacturer: Belden Inc.
Beta
⌘K

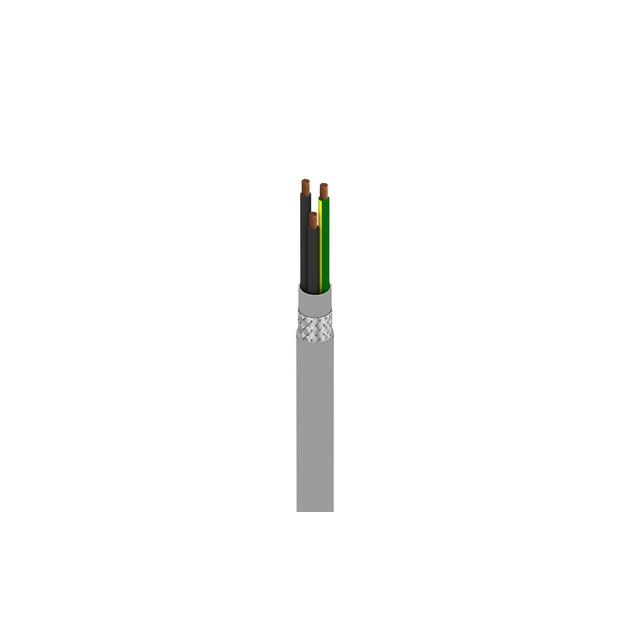

CABLE 3CON 12AWG GRAY FEET
| Part | Shield Coverage | Shield Material | Spool Size [x] | Spool Size [x] | Ratings | Wire Gauge | Voltage | Cable Type | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Shield Type | Length | Number of Conductors | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Features | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 85 % | Copper Tinned | 304.8 m | 1000 ft | UL Style 2587 | 12 AWG | 600 V | Multi-Conductor | Copper Bare | 0.53 in | 13.46 mm | 0.06 in | 1.524 mm | Braid | Enter Number of Feet in Order Quantity | 3 | -5 °C | 90 °C | Poly-Vinyl Chloride (PVC) | Gray | 30 AWG | 65 | Poly-Vinyl Chloride (PVC) | Oil Resistant | ||
 Belden Inc. | 85 % | Copper Tinned | UL Style 2587 | 12 AWG | 600 V | Multi-Conductor | Copper Bare | 0.53 in | 13.46 mm | 0.06 in | 1.524 mm | Braid | 3 | -5 °C | 90 °C | Poly-Vinyl Chloride (PVC) | Gray | 30 AWG | 65 | Poly-Vinyl Chloride (PVC) | Oil Resistant | 100 ft | 30.5 m |
