71092 Series
Manufacturer: Laird Thermal Systems, Inc.
Beta
⌘K

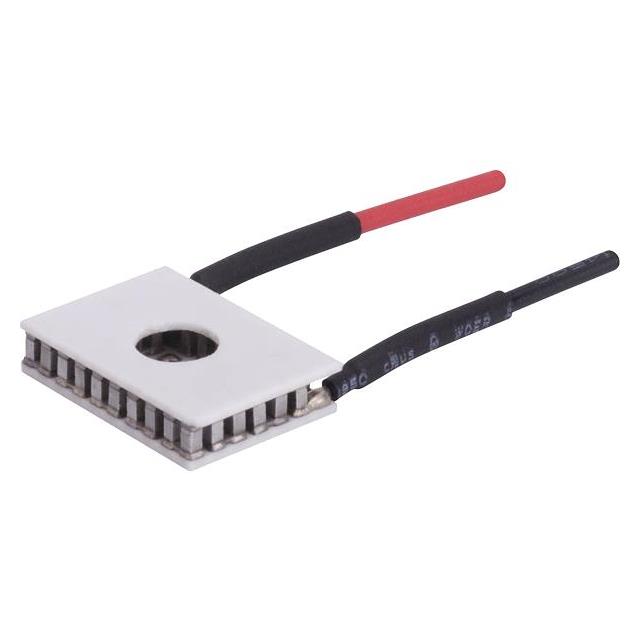

PELTIER SH14,15,06,L,W4.5
| Part | Size / Dimension [y] | Size / Dimension [x] | Number of Stages | Features | Resistance | Voltage - Max [Max] | Height [z] | Qmax @ Th | Operating Temperature | Delta Tmax @ Th | Current - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Laird Thermal Systems, Inc. | 14 mm | 14 mm | 1 | Lead Wires Non-Sealed | 270 mOhms | 1.7 V | 3.81 mm | 6 W | 80 °C | 67 °C | 6 A |
