A-DS 50 Series
Manufacturer: Assmann WSW Components
Beta
⌘K

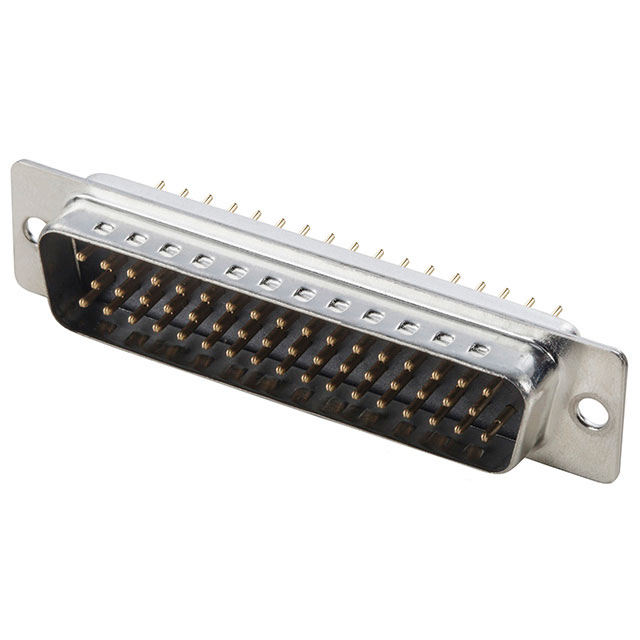

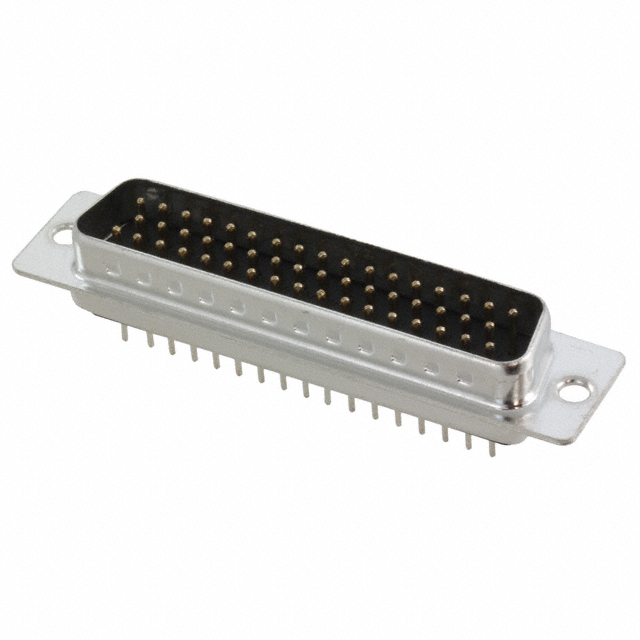

CONN D-SUB PLUG 50POS VERT SLDR
| Part | Voltage Rating | Dielectric Material | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Number of Positions | Contact Finish | Connector Type | Flange Feature | Mounting Type | Termination | Number of Rows [custom] | Current Rating (Amps) | Features | Contact Type | Material Flammability Rating | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Style | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Assmann WSW Components | 250 VAC | Polybutylene Terephthalate (PBT) Glass Filled | Copper Alloy | -55 C | 105 ░C | Black | 50 | Gold | Plug Male Pins | Housing/Shell (Unthreaded) | Through Hole | Solder | 3 | 3 A | Grounding Indents | Signal | UL94 V-0 | 5 | D DD | D-Sub | Flash |
 Assmann WSW Components | 250 V | Polybutylene Terephthalate (PBT) Glass Filled | Brass | -20 ░C | 105 ░C | Gray | 50 | Gold | Plug Male Pins | Housing/Shell (Unthreaded) | Through Hole | Solder | 3 | 3 A | Grounding Indents | Signal | UL94 V-0 | 5 | D DD | D-Sub | Flash |
