438-017 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DL FMALE 17P 0.200 2PC

Part	Termination Rows [custom]	Material - Insulation	Number of Rows [custom]	Gender	Mounting Type	Contact Material	Pitch	Pitch	Contact Finish	Card Type	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Card Thickness	Card Thickness	Flange Feature [diameter]	Flange Feature [diameter]	Color
EDAC Inc. 438-017-540-112	2	Diallyl Phthalate (DAP)	2	Female	Panel Mount Through Hole	Copper Alloy	5.08 mm	0.2 in	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	-65 ░C	125 °C	Wire Wrap	1.57 mm	0.062 in	3.25 mm	0.128 "	Green

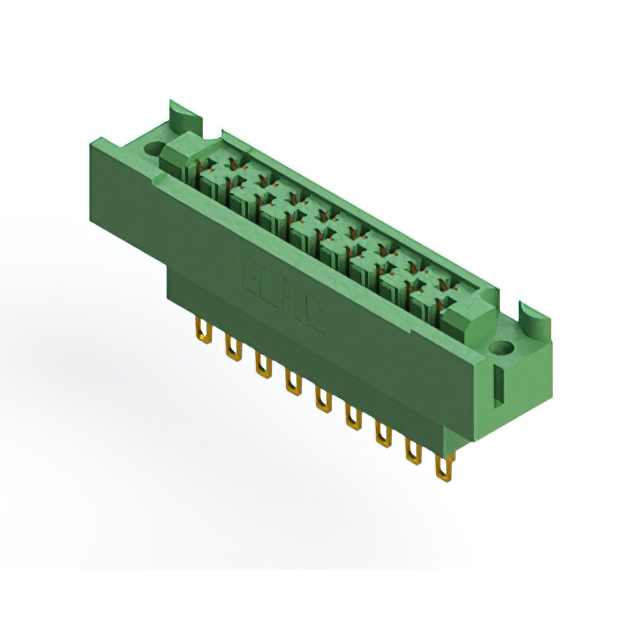

EDAC Inc. 438-017-500-122	2	Diallyl Phthalate (DAP)	2	Female	Panel Mount Through Hole	Copper Alloy	5.08 mm	0.2 in	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	-65 ░C	125 °C	Solder Eyelet(s)	2.36 mm	0.093 "	3.25 mm	0.128 "	Green
EDAC Inc. 438-017-520-122	2	Diallyl Phthalate (DAP)	2	Female	Panel Mount Through Hole	Copper Alloy	5.08 mm	0.2 in	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	-65 ░C	125 °C	Solder	2.36 mm	0.093 "	3.25 mm	0.128 "	Green

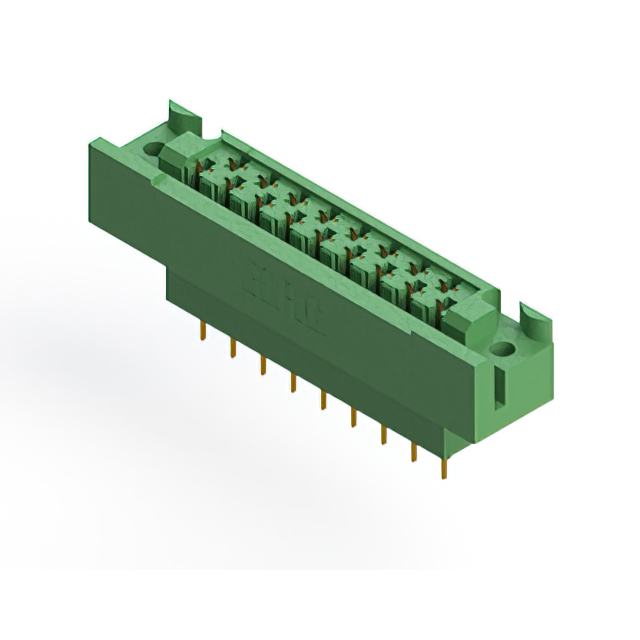

EDAC Inc. 438-017-520-112	2	Diallyl Phthalate (DAP)	2	Female	Panel Mount Through Hole	Copper Alloy	5.08 mm	0.2 in	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	-65 ░C	125 °C	Solder	1.57 mm	0.062 in	3.25 mm	0.128 "	Green
EDAC Inc. 438-017-541-112	2	Diallyl Phthalate (DAP)	2	Female	Panel Mount Through Hole	Copper Alloy	5.08 mm	0.2 in	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	-65 ░C	125 °C	Wire Wrap	1.57 mm	0.062 in	3.25 mm	0.128 "	Green

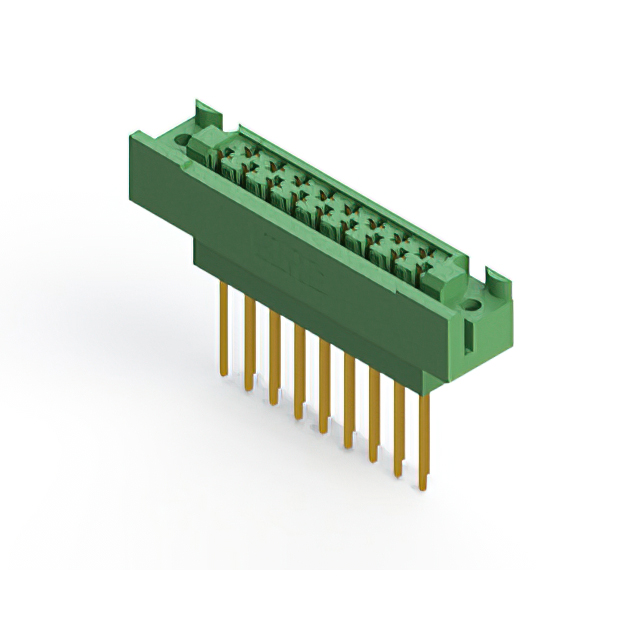

EDAC Inc. 438-017-542-112	2	Diallyl Phthalate (DAP)	2	Female	Panel Mount Through Hole	Copper Alloy	5.08 mm	0.2 in	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	-65 ░C	125 °C	Wire Wrap	1.57 mm	0.062 in	3.25 mm	0.128 "	Green
EDAC Inc. 438-017-542-122	2	Diallyl Phthalate (DAP)	2	Female	Panel Mount Through Hole	Copper Alloy	5.08 mm	0.2 in	Gold	Non Specified - Dual Edge	0.25 Ám	10 Áin	-65 ░C	125 °C	Wire Wrap	2.36 mm	0.093 "	3.25 mm	0.128 "	Green
