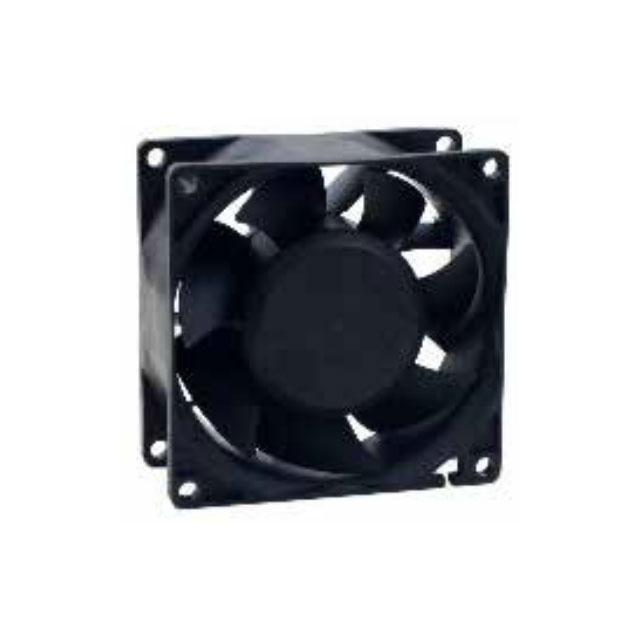

MR8038 Series

Catalog

FAN AXIAL 80X38MM 12VDC WIRE

Part	Current Rating (Amps)	Material - Blade	Air Flow	Air Flow	Material - Frame	Fan Type	RPM	Width [y]	Static Pressure	Static Pressure	Voltage - Rated	Bearing Type	Features	Noise	Termination	Size / Dimension [z]	Size / Dimension [x]
Mechatronics Fan Group MR8038L12B-RSR	0.38 A	Plastic	63.5 CFM	1.78 mł/min	Plastic	Tubeaxial	5000 RPM	38 mm	0.51 in H2O	127 Pa	12 VDC	Ball	Auto Restart	45 dB(A)	2 Wire Leads	80 mm	80 mm
Mechatronics Fan Group MR8038E12B-RSR	1.24 A	Plastic	101.2 CFM	2.83 m³/min	Plastic	Tubeaxial	8000 RPM	38 mm	1.311 in H2O	326.6 Pa	12 VDC	Ball	Auto Restart	59 dB(A)	2 Wire Leads	80 mm	80 mm
Mechatronics Fan Group MR8038X24B-RSR	1.2 A	Plastic	126 CFM	3.53 m³/min	Plastic	Tubeaxial	10000 RPM	38 mm	2.03 in H2O	505.7 Pa	24 VDC	Ball	Auto Restart	65 dB	2 Wire Leads	80 mm	80 mm
Mechatronics Fan Group MR8038M24B-RSR	0.33 A	Plastic	76.2 CFM	2.13 mł/min	Plastic	Tubeaxial	6000 RPM	38 mm	0.74 in H2O	184.3 Pa	24 VDC	Ball	Auto Restart	50 dB(A)	2 Wire Leads	80 mm	80 mm
Mechatronics Fan Group MR8038E24B-RSR	0.62 A	Plastic	101.2 CFM	2.83 m³/min	Plastic	Tubeaxial	8000 RPM	38 mm	1.311 in H2O	326.6 Pa	24 VDC	Ball	Auto Restart	59 dB(A)	2 Wire Leads	80 mm	80 mm
Mechatronics Fan Group MR8038X24B1+6-RSR	1.2 A	Plastic	126 CFM	3.53 m³/min	Plastic	Tubeaxial	10000 RPM	38 mm	2.03 in H2O	505.7 Pa	24 VDC	Ball	Auto Restart PWM Control Speed Sensor (Tach)	65 dB	4 Wire Leads	80 mm	80 mm
Mechatronics Fan Group MR8038H12B-RSR	1 A	Plastic	88.6 CFM	2.48 mł/min	Plastic	Tubeaxial	7000 RPM	38 mm	1 in H2O	249.1 Pa	12 VDC	Ball	Auto Restart	56 dB	2 Wire Leads	80 mm	80 mm
Mechatronics Fan Group MR8038H24B-RSR	0.5 A	Plastic	88.6 CFM	2.48 mł/min	Plastic	Tubeaxial	7000 RPM	38 mm	1 in H2O	249.1 Pa	24 VDC	Ball	Auto Restart	56 dB	2 Wire Leads	80 mm	80 mm
Mechatronics Fan Group MR8038M12B-RSR	660 mA	Plastic	76.2 CFM	2.13 mł/min	Plastic	Tubeaxial	6000 RPM	38 mm	0.74 in H2O	184.3 Pa	12 VDC	Ball	Auto Restart	50 dB(A)	2 Wire Leads	80 mm	80 mm
Mechatronics Fan Group MR8038L24B-RSR		Plastic	63.5 CFM	1.78 mł/min	Plastic	Tubeaxial	5000 RPM	38 mm	0.51 in H2O	127 Pa	24 VDC	Ball	Auto Restart	45 dB(A)	2 Wire Leads	80 mm	80 mm
