PST Series

Catalog

HEADERS & WIRE HOUSINGS 8 POS 5MM PITCH THRU HOLE PIN STRIP

Part	Termination Style	Color	Number of Positions	Contact Mating Finish	Mounting Type	Positions Per Level	Current - IEC	Current - UL	Type	Voltage - UL	Number of Levels	Header Orientation	Pitch	Pitch	Voltage - IEC	Material Flammability Rating	Housing Material	Insulation Height	Insulation Height	Contact Tail Length	Contact Tail Length	Insulation Height [z]	Insulation Height [z]	Features
Phoenix Contact 1717314	Solder	Black	8	Tin	Through Hole	8	12 A	16 A	Header Male Pins Unshrouded	300 V	1	90° Right Angle	0.197 in	5 mm	400 V
Phoenix Contact 1717327	Solder	Black	9	Tin	Through Hole	9	12 A	16 A	Header Male Pins Unshrouded	300 V	1	90° Right Angle	0.197 in	5 mm	400 V	UL94 V-0	Polyamide (PA) Nylon

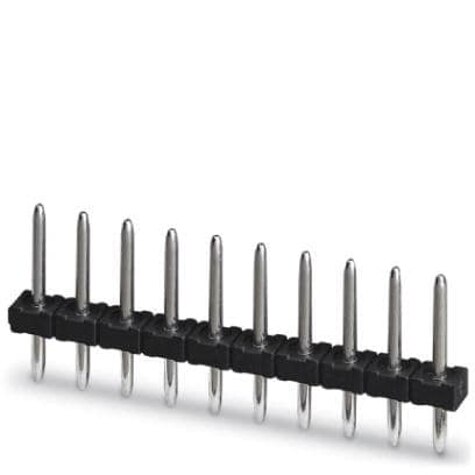

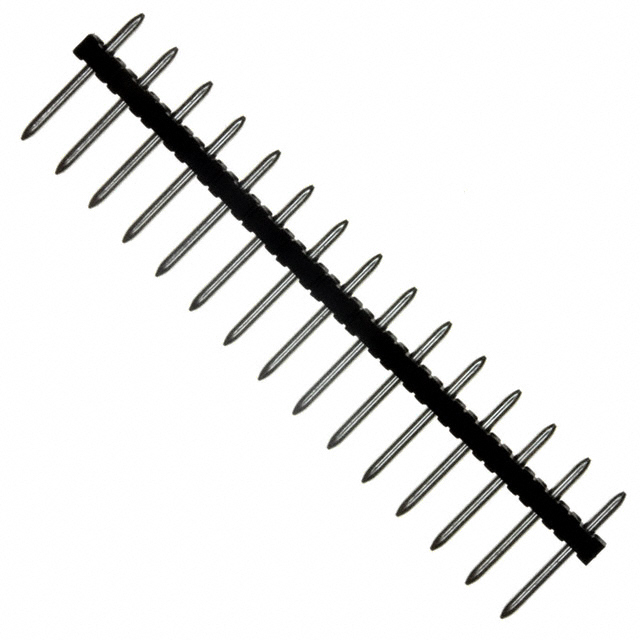

Phoenix Contact 1945229	Solder	Black	15	Tin	Through Hole	15	8 A	10 A	Header Male Pins Unshrouded	300 V	1	Vertical	0.138 "	3.5 mm	250 V	UL94 V-0	Polyamide (PA) Nylon	13 mm	0.512 in	0.15 in	3.81 mm

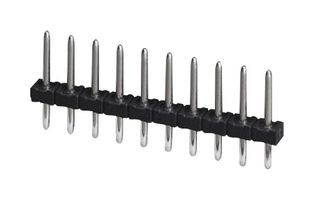

Phoenix Contact 1945193	Solder	Black	12	Tin	Through Hole	12	8 A	10 A	Header Male Pins Unshrouded	300 V	1	Vertical	0.138 "	3.5 mm	250 V

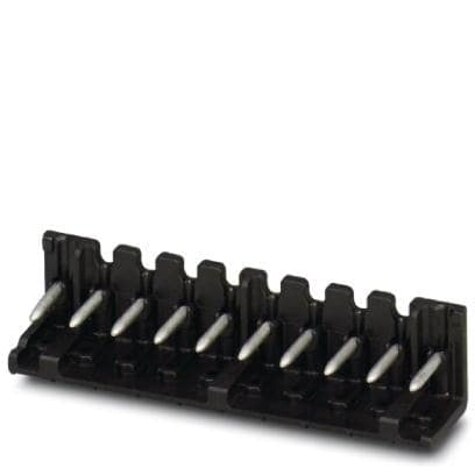

Phoenix Contact 1704424	Solder	Black	12	Tin	Through Hole	12	13.5 A	10 A	Header Male Pins Partial Shroud	300 V	1	90° Right Angle	0.197 in	5 mm	400 V	UL94 V-0	Polyamide (PA) Nylon	11.2 mm	0.441 in	0.138 in	3.5 mm
Phoenix Contact 1704576	Solder	Black	11	Tin	Through Hole	11	13.5 A	10 A	Header Male Pins Partial Shroud	300 V	1	Vertical	0.197 in	5 mm	400 V	UL94 V-0	Polyamide (PA) Nylon	11.2 mm	0.441 in	0.138 in	3.5 mm

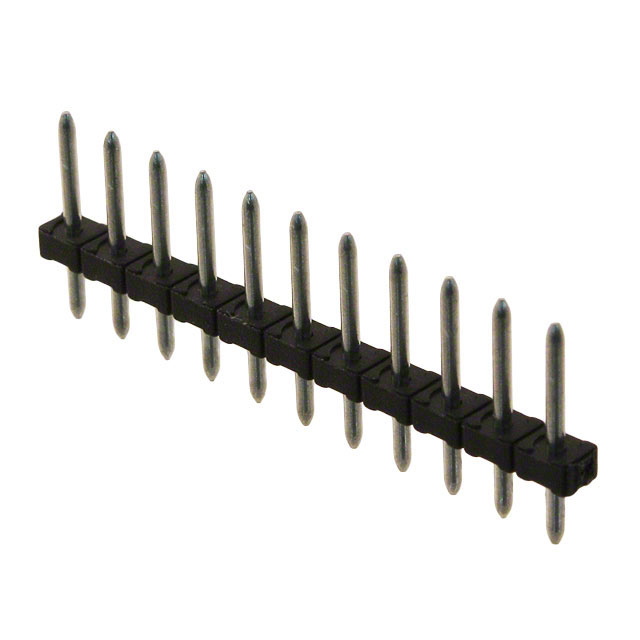

Phoenix Contact 1945180	Solder	Black	11	Tin	Through Hole	11	8 A	10 A	Header Male Pins Unshrouded	300 V	1	Vertical	0.138 "	3.5 mm	250 V	UL94 V-0	Polyamide (PA) Nylon	13 mm	0.512 in	0.15 in	3.81 mm

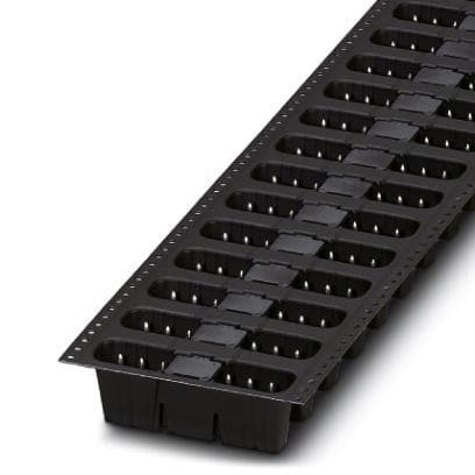

Phoenix Contact 1720356	Solder	Black	8	Tin	Through Hole	8	12 A	16 A	Header Male Pins Unshrouded	300 V	1	Vertical	0.197 in	5 mm	400 V	UL94 V-0	Polyamide (PA) Nylon			0.138 in	3.5 mm	2 mm	0.079 in	Pick and Place Cap

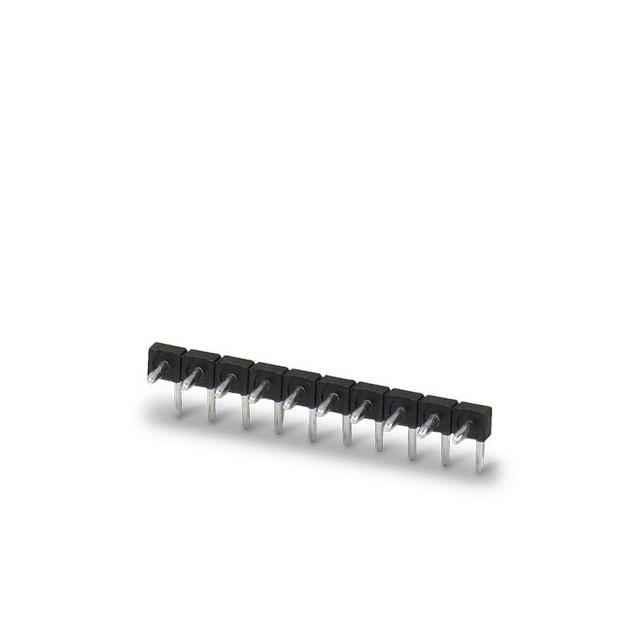

Phoenix Contact 1737048	Solder	Black	5	Tin	Through Hole	5	8 A	10 A	Header Male Pins Unshrouded	300 V	1	90° Right Angle	0.138 "	3.5 mm	250 V	UL94 V-0	Polyamide (PA) Nylon			0.26 in	6.6 mm
Phoenix Contact 1704547	Solder	Black	8	Tin	Through Hole	8	13.5 A	10 A	Header Male Pins Partial Shroud	300 V	1	Vertical	0.197 in	5 mm	400 V	UL94 V-0	Polyamide (PA) Nylon	11.2 mm	0.441 in	0.138 in	3.5 mm
