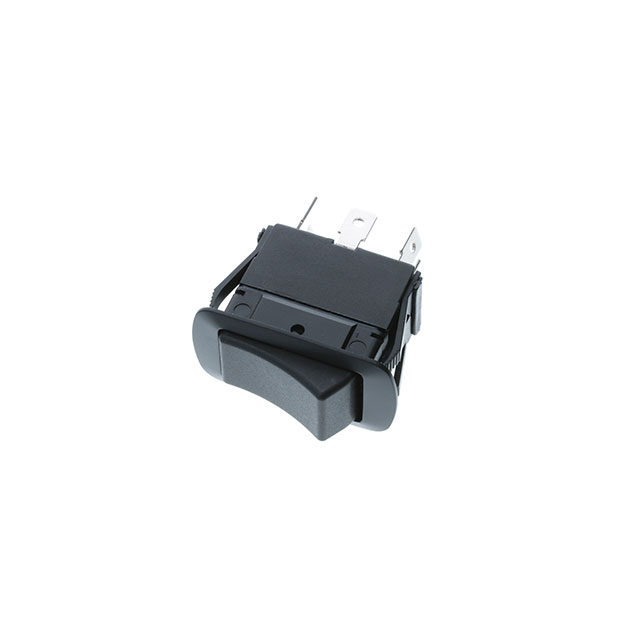

SRB1-2D Series
Manufacturer: Switch Components
Beta
⌘K
VAC SEALED IP56, DPDT ON-ON
| Part | Mounting Type | Color - Actuator/Cap | Operating Temperature (Max) | Operating Temperature (Min) | Actuator Marking | Panel Cutout Width | Panel Cutout Shape | Panel Cutout Length | Switch Function | Approval Agency | Actuator Type | Ingress Protection IP Rating | Ingress Protection Description | Voltage Rating - AC | Current Rating | Circuit | Quick Connect Size (0.250") | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch Components | Panel Mount Snap-In | Black | 85 °C | -20 °C | No Marking | 21.2 mm | Rectangular | 36.6 mm | On-On | CSA cURus ENEC | Concave (Curved) | IP56 | Dust Protected Water Resistant | 125 V | 16 A | DPDT | 0.25 in | Quick Connect |
